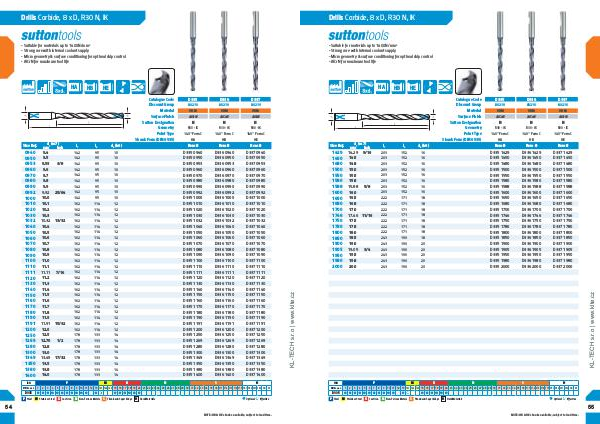

Drills Carbide, 8 x D, R30 N, IK
- Suitable for materials up to 1400N / mm 2- Strong core with internal coolant supply- Micro geometry & surface conditioning for optimal chip control- AlCrN for maximum tool life
HA HB
HE d 1
( m7)
Catalogue Code
D335
D336
D337
Discount Group
A0210
A0210
A0210
Material
VHM
VHM
VHM
Surface Finish
AlCrN
AlCrN
AlCrN
Sutton Designation
N
N
N
Geometry
R30- IK
R30- IK
R30- IK
Point Type
140 ° Form C
140 ° Form C
140 ° Form C
Shank Form( DIN 6535)
HA
HB
HE
Size Ref.
mm
inch
l 1
l 2
d 2
( h6)
Item #
Item #
Item #
1429
14.29
9 / 16
203
152
16
D335 1429
D336 1429
D337 1429
1450
14.5
203
152
16
D335 1450
D336 1450
D337 1450
1480
14.8
203
152
16
D335 1480
D336 1480
D337 1480
1500
15.0
203
152
16
D335 1500
D336 1500
D337 1500
1550
15.5
203
152
16
D335 1550
D336 1550
D337 1550
1580
15.8
203
152
16
D335 1580
D336 1580
D337 1580
1588
15.88
5 / 8
203
152
16
D335 1588
D336 1588
D337 1588
1600
16.0
203
152
16
D335 1600
D336 1600
D337 1600
1650
16.5
222
171
18
D335 1650
D336 1650
D337 1650
1680
16.8
222
171
18
D335 1680
D336 1680
D337 1680
1700
17.0
222
171
18
D335 1700
D336 1700
D337 1700
1746
17.46
11 / 16
222
171
18
D335 1746
D336 1746
D337 1746
1750
17.5
222
171
18
D335 1750
D336 1750
D337 1750
1780
17.8
222
171
18
D335 1780
D336 1780
D337 1780
1800
18.0
222
171
18
D335 1800
D336 1800
D337 1800
1850
18.5
243
190
18
D335 1850
D336 1850
D337 1850
1900
19.0
243
190
20
D335 1900
D336 1900
D337 1900
1905
19.05
3 / 4
243
190
20
D335 1905
D336 1905
D337 1905
1950
19.5
243
190
20
D335 1950
D336 1950
D337 1950
1980
19.8
243
190
20
D335 1980
D336 1980
D337 1980
2000
20.0
243
190
20
D335 2000
D336 2000
D337 2000
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
D335
1 2
3 4
5
•
•
•
•
•
•
•
•
•
•
•
6
P 7
8 9
10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
•
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
M K
•
•
•
•
•
•
N S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
NOTE: HB & HE shanks available, subject to lead time.
