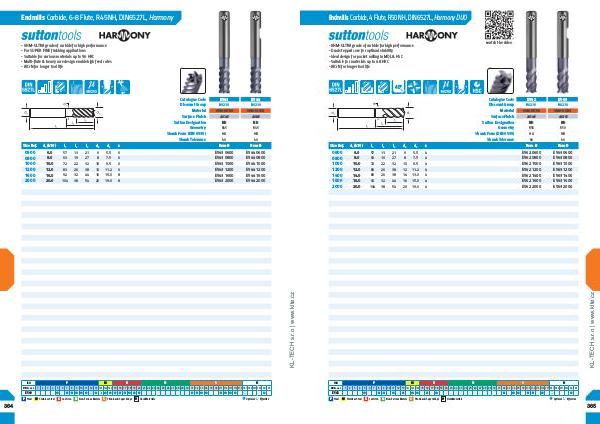

Endmills Carbide, 6-8 Flute, R45 NH, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- For super fine finishing applications
- Suitable for various materials up to 56 HRC
- Multi-flute & heavy core design enable high feed rates
- AlCrN for longer tool life
+
10º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (h10)
0600
0800
1000
1200
1600
2000
E544
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
NH NH
R45 R45
HA HB
h6 h6
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 13 21 6 5.5 6 63 19 27 8 7.5 6 72 22 32 10 9.5 6 83 26 38 12 11.2 6 92 32 44 16 15.0 8 104 38 54 20 19.0 8 E543 0600
E543 0800
E543 1000
E543 1200
E543 1600
E543 2000 E544 0600
E544 0800
E544 1000
E544 1200
E544 1600
E544 2000
