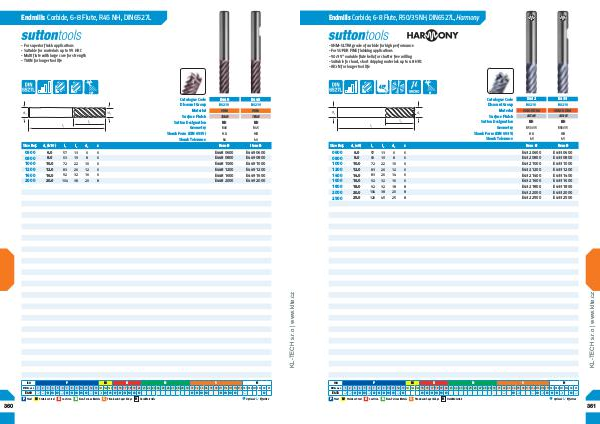

Endmills Carbide, 6-8 Flute, R50/35 NH, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- For super fine finishing applications
- 50/35° variable flute helix for chatter free milling
- Suitable for hard, short chipping materials up to 48 HRC
- AlCrN for longer tool life
+
45º
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
E433
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
NH NH
R50/35 R50/35
HA HB
h5 h5
d 1 (e8) l 1 l 2 d 2 z Item # Item #
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0 57 13 6 6 63 19 8 6 72 22 10 6 83 26 12 6 83 26 14 6 92 32 16 6 92 32 18 8 104 38 20 8 120 45 25 8 E432 0600
E432 0800
E432 1000
E432 1200
E432 1400
E432 1600
E432 1800
E432 2000
E432 2500 E433 0600
E433 0800
E433 1000
E433 1200
E433 1400
E433 1600
E433 1800
E433 2000
E433 2500
www.klte.cz
0600
0800
1000
1200
1400
1600
1800
2000
2500
E432 B0210
P
Steel
6
7
M
8
M
Stainless Steel
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
5
4
3
E432
P
2
1
ISO
VDI 3323
• Optimal • Effective
