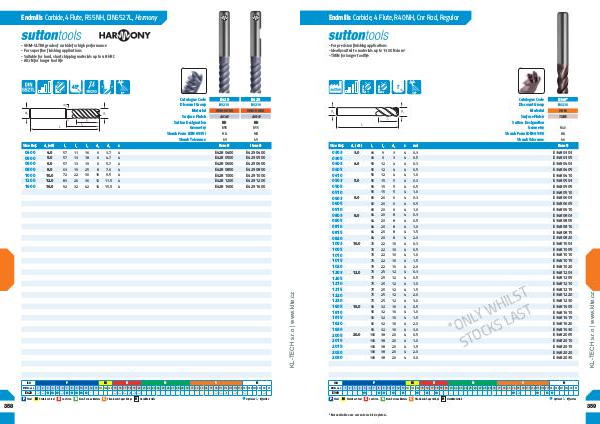

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Página 338

Endmills Carbide, 4 Flute, R55 NH, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- For super fine finishing applications
- Suitable for hard, short chipping materials up to 48 HRC
- AlCrN for longer tool life
+
45º
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0400
0500
0600
0800
1000
1200
1600
E429
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
NH NH
R55 R55
HA HB
h5 h5
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 11 16 6 3.7 4 57 13 18 6 4.7 4 57 13 19 6 5.7 4 63 19 25 8 7.6 4 72 22 30 10 9.5 4 83 26 36 12 11.5 4 92 32 42 16 15.5 4 E428 0400
E428 0500
E428 0600
E428 0800
E428 1000
E428 1200
E428 1600 E429 0400
E429 0500
E429 0600
E429 0800
E429 1000
E429 1200
E429 1600
www.klte.cz
4.0
5.0
6.0
8.0
10.0
12.0
16.0
E428 B0210
P
358
Steel
6
7
M
8
M
Stainless Steel
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
5
4
3
E428
P
2
1
ISO
VDI 3323
• Optimal • Effective
