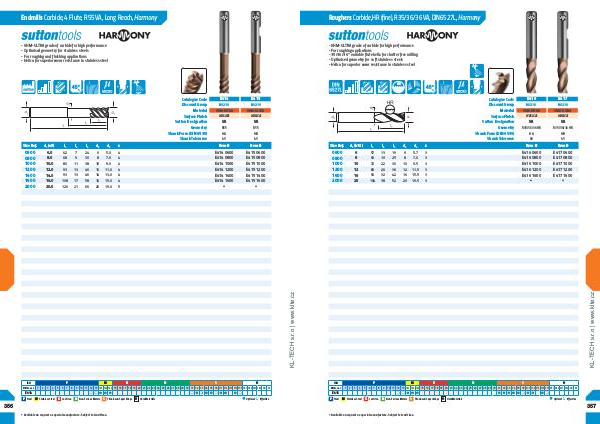

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 337

Roughers Carbide, HR (fine), R35/36/36 VA, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- For roughing applications
- 35/36/36° variable flute helix for chatter free milling
- Optimised geometry for soft stainless steels
- Helica for superior wear resistance in stainless steel
HR
+
12º
45º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
E417
B0210
VHM-ULTRA VHM-ULTRA
HELICA HELICA
VA VA
R35/36/36 HR R35/36/36 HR
HA HB
h5 h5
d 1 (h10) l 1 l 2 l 3 d 2 d 3 z Item # Item #
6
8
10
12
16
20 57 13 19 6 5.7 3 63 19 25 8 7.6 3 72 22 30 10 9.5 3 83 26 36 12 11.5 3 92 32 42 16 15.5 3 104 38 52 20 19.5 3 E416 0600
E416 0800
E416 1000
E416 1200
E416 1600
• E417 0600
E417 0800
E417 1000
E417 1200
E417 1600
•
www.klte.cz
0600
0800
1000
1200
1600
2000
E416 B0210
P
2
3
4
5
6
7
M
8
Steel
N
E416
P
K
M
Stainless Steel
K
Cast Iron
S
H
