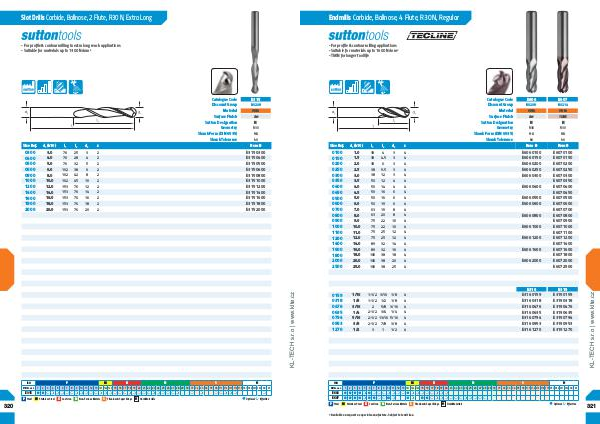

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 300

Slot Drills Carbide, Ballnose, 2 Flute, R30 N, Extra Long
- For profile & contour milling in extra long reach applications
- Suitable for materials up to 1300 N/mm 2
+
12º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (h10)
0300
0400
0500
0600
0800
1000
1200
1400
1600
1800
2000
VHM
Brt
N
R30
HA
h6
l 1 l 2 d 2 z Item #
76 25 3 2 76 28 4 2 76 32 5 2 102 38 6 2 102 42 8 2 102 45 10 2 153 76 12 2 153 76 14 2 153 76 16 2 153 76 18 2 153 76 20 2 E315 0300
E315 0400
E315 0500
E315 0600
E315 0800
E315 1000
E315 1200
E315 1400
E315 1600
E315 1800
E315 2000
www.klte.cz
3.0
4.0
5.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
E315
B0208
P
320
Steel
5
6
7
M
8
K
N
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
4
3
E315
P
2
1
ISO
VDI 3323
• Optimal • Effective
