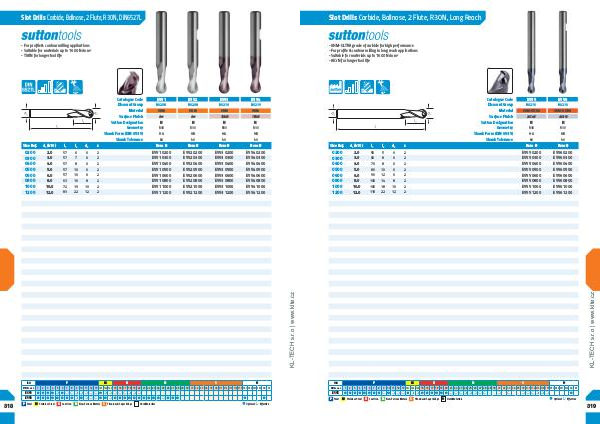

Slot Drills Carbide, Ballnose, 2 Flute, R30 N, Long Reach
- VHM-ULTRA grade of carbide for high performance- For profile & contour milling in long reach applications- Suitable for materials up to 1600 N / mm 2- AlCrN for longer tool life
+
12 º
Catalogue Code
E555
E556
Discount Group
B0210
B0210
Material
VHM-ULTRA
VHM-ULTRA
Surface Finish
AlCrN
AlCrN
Sutton Designation
N
N
Geometry
R30
R30
Shank Form( DIN 6535)
HA
HB
Shank Tolerance
h6
h6
Size Ref.
d 1
( h10)
l 1
l 2
d 2
z
Item #
Item #
0200
2.0
50
5
6
2
E555 0200
E556 0200
0300
3.0
60
8
6
2
E555 0300
E556 0300
0400
4.0
70
8
6
2
E555 0400
E556 0400
0500
5.0
80
10
6
2
E555 0500
E556 0500
0600
6.0
90
12
6
2
E555 0600
E556 0600
0800
8.0
100
14
8
2
E555 0800
E556 0800
1000
10.0
100
18
10
2
E555 1000
E556 1000
1200
12.0
110
22
12
2
E555 1200
E556 1200
