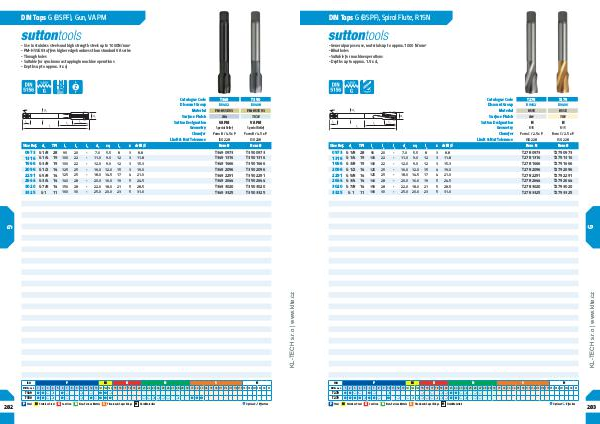

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 262

DIN Taps G (BSPF), Gun, VA PM
- Use in stainless steels and high strength steels up to 1000N/mm 2
- PM-HSSE V3 offers higher edge hardness than standard VA series
- Through holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d 1
Size Ref.
0973
1316
1666
2096
2291
2644
3020
3325
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
G 1/8
G 1/4
G 3/8
G 1/2
G 5/8
G 3/4
G 7/8
G 1 28
19
19
14
14
14
14
11 90 20 - 7.0 5.5 8 3 8.8
100 22 - 11.0 9.0 12 3 11.8
100 22 - 12.0 9.0 12 3 15.3
125 25 - 16.0 12.0 15 3 19.0
125 25 - 18.0 14.5 17 4 21.0
140 28 - 20.0 16.0 19 5 24.5
150 28 - 22.0 18.0 21 5 28.5
160 30 - 25.0 20.0 23 5 31.0
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T349 T350
D0402 D0408
PM-HSSE V3 PM-HSSE V3
Blu TiCN
VA PM VA PM
Special Relief Special Relief
Form B / 4.5 x P Form B / 4.5 x P
ISO 228 ISO 228
Item # Item #
T349 0973
T349 1316
T349 1666
T349 2096
T349 2291
T349 2644
T349 3020
T349 3325 T350 0973
T350 1316
T350 1666
T350 2096
T350 2291
T350 2644
T350 3020
T350 3325
www.klte.cz
P
282
P
Steel
M
Stainless Steel
M
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
8
7
6
5
4
3
T349
T350
2
1
ISO
VDI 3323
• Optimal • Effective
