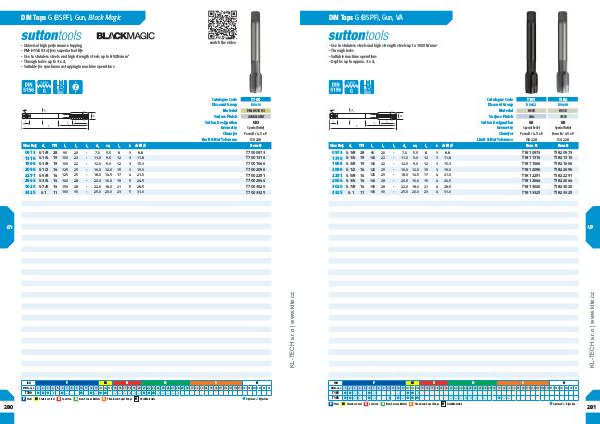

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 261

DIN Taps G (BSPF), Gun, VA
- Use in stainless steels and high strength steels up to 1000N/mm 2
- Through holes
- Suitable machine operations
- Depths up to approx. 3 x d 1
Size Ref.
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
G 1/8
G 1/4
G 3/8
G 1/2
G 5/8
G 3/4
G 7/8
G 1 28
19
19
14
14
14
14
11 90 20 - 7.0 5.5 8 3 8.8
100 22 - 11.0 9.0 12 3 11.8
100 22 - 12.0 9.0 12 3 15.3
125 25 - 16.0 12.0 15 3 19.0
125 25 - 18.0 14.5 17 4 21.0
140 28 - 20.0 16.0 19 4 24.5
150 28 - 22.0 18.0 21 4 28.5
160 30 - 25.0 20.0 23 4 31.0
T181 T182
D0402 D0408
HSSE HSSE
Blu TiCN
VA VA
Special Relief Special Relief
Form B / 4.5 x P Form B / 4.5 x P
ISO 228 ISO 228
Item # Item #
T181 0973
T181 1316
T181 1666
T181 2096
T181 2291
T181 2644
T181 3020
T181 3325 T182 0973
T182 1316
T182 1666
T182 2096
T182 2291
T182 2644
T182 3020
T182 3325
www.klte.cz
0973
1316
1666
2096
2291
2644
3020
3325
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
P
P
Steel
M
Stainless Steel
M
K
Cast Iron
K
N
S
H
