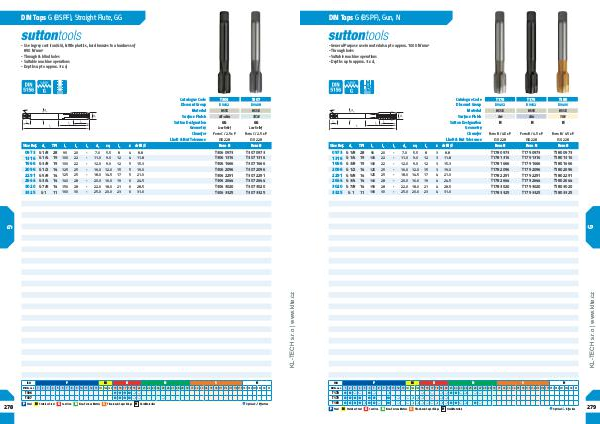

DIN Taps G (BSPF), Straight Flute, GG
- Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of
850 N/mm 2
- Through & blind holes
- Suitable machine operations
- Depths up to approx. 3 x d 1
Size Ref.
0973
1316
1666
2096
2291
2644
3020
3325
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
G 1/8
G 1/4
G 3/8
G 1/2
G 5/8
G 3/4
G 7/8
G 1 28
19
19
14
14
14
14
11 90 20 - 7.0 5.5 8 4 8.8
100 22 - 11.0 9.0 12 4 11.8
100 22 - 12.0 9.0 12 5 15.3
125 25 - 16.0 12.0 15 5 19.0
125 25 - 18.0 14.5 17 5 21.0
140 28 - 20.0 16.0 19 6 24.5
150 28 - 22.0 18.0 21 6 28.5
160 30 - 25.0 20.0 23 6 31.0
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T306 T307
D0402 D0408
HSSE HSSE
Ni + Blu TiCN
GG GG
Low Relief Low Relief
Form C / 2.5 x P Form C / 2.5 x P
ISO 228 ISO 228
Item # Item #
T306 0973
T306 1316
T306 1666
T306 2096
T306 2291
T306 2644
T306 3020
T306 3325 T307 0973
T307 1316
T307 1666
T307 2096
T307 2291
T307 2644
T307 3020
T307 3325
www.klte.cz
P
ISO
1
VDI 3323
2
3
4
5
6
7
M
8
P
Steel
N
S
H
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
T306
T307
278
K
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
