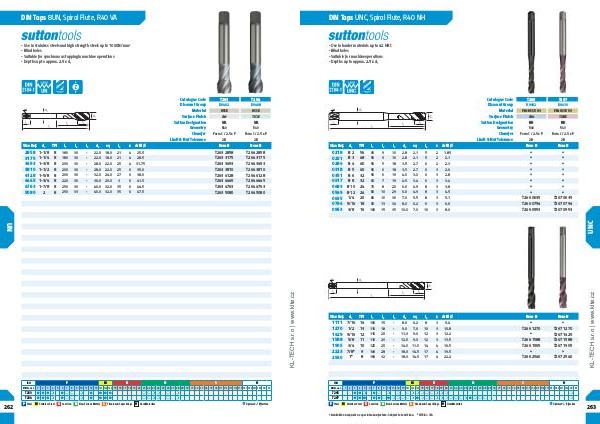

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 242

DIN Taps 8UN, Spiral Flute, R40 VA
- Use in stainless steels and high strength steels up to 1000N / mm 2- Blind holes- Suitable for synchronous tapping in machine operations- Depths up to approx. 2.5 x d 1
Catalogue Code
T263
T264
Discount Group
D0402
D0408
Material
HSSE
HSSE
Surface Finish
Brt
TiCN
Sutton Designation
VA
VA
Geometry
R40
R40
Chamfer
Form C / 2.5 x P
Form C / 2.5 x P
Limit & Nut Tolerance
2B
2B
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
2858
1-1 / 8
8
180
30
-
22.0
18.0
21
4
25.5
T263 2858
T264 2858
3175
1-1 / 4
8
180
30
-
22.0
18.0
21
4
28.5
T263 3175
T264 3175
3493
1-3 / 8
8
200
30
-
28.0
22.0
25
4
31.75
T263 3493
T264 3493
3810
1-1 / 2
8
200
30
-
28.0
22.0
25
6
35.0
T263 3810
T264 3810
4128
1-5 / 8
8
200
30
-
32.0
24.0
27
6
38.0
T263 4128
T264 4128
4445
1-3 / 4
8
220
30
-
36.0
29.0
3
6
41.5
T263 4445
T264 4445
4763
1-7 / 8
8
250
30
-
40.0
32.0
35
6
44.5
T263 4763
T264 4763
5080
2
8
250
33
-
40.0
32.0
35
6
47.5
T263 5080
T264 5080
