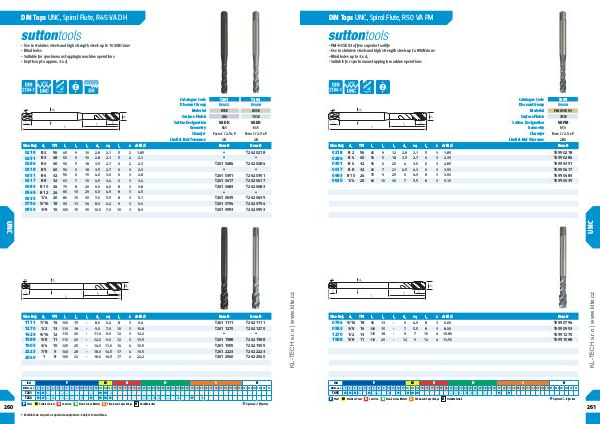

DIN Taps UNC, Spiral Flute, R50 VA PM
- PM-HSSE V3 offers superior tool life
- Use in stainless steels and high strength steels up to 850N/mm 2
- Blind holes up to 3 x d 1
- Suitable for synchronous tapping in machine operations
Size Ref.
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
# 2
# 4
# 6
# 8
# 10
1/4 56
40
32
32
24
20 45 9 12 2.8 2.1 5 3 1.85
56 5 18 3.5 2.7 6 3 2.35
56 6 20 4 3.0 6 3 2.85
63 7 21 4.5 4.3 6 3 3.50
70 9 25 6 4.9 8 3 3.90
80 10 30 7 5.5 8 3 5.10
d 1 TPI
T695
D0408
PM-HSSE V3
TiCN
VA PM
R50
Form C / 2.5 x P
2BX
Item #
T695 0218
T695 0284
T695 0351
T695 0417
T695 0483
T695 0635
l 1 l 2 l 3 d 2 sq l 4 z drill ø Item #
90 13 - 6 4.9 8 3 6.60 100 15 - 7 5.5 8 3 8.00 110 18 - 9 7 10 4 10.80 110 20 - 12 9 12 4 13.50 T695 0794
T695 0953
T695 1270
T695 1588
