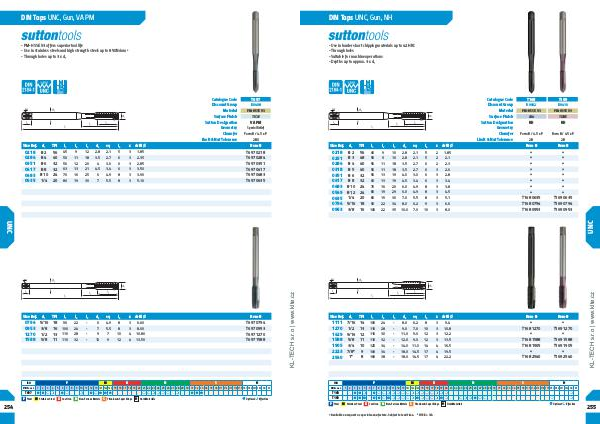

DIN Taps UNC, Gun, NH
25
- Use in harder short chipping materials up to 42 HRc- Through holes- Suitable for machine operations- Depths up to approx. 3 x d 1
Catalogue Code
T168
T169
Discount Group
D0402
D0410
Material
PM-HSSE V3
PM-HSSE V3
Surface Finish
Blu
TiAlN
Sutton Designation
NH
NH
Geometry Chamfer
Form B / 4.5 x P
Form B / 4.5 x P
Limit & Nut Tolerance
2B
2B
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
0218 # 2 56 45 9 10 2.8 2.1 5 2 1.85 • •
0251 # 3 48 50 9 10 2.8 2.1 5 2 2.1 • •
0284 # 4 40 56 11 18 3.5 2.7 6 2 2.3 • •
0318 # 5 40 56 11 18 3.5 2.7 6 3 2.6 • •
0351 # 6 32 56 13 19 4.0 3.0 6 3 2.8 • •
0417 # 8 32 63 13 19 4.5 3.4 6 3 3.4 • •
0483 # 10 24 70 16 20 6.0 4.9 8 3 3.8 • •
0549 # 12 24 80 19 29 6.0 4.9 8 3 4.5 • •
0635 1 / 4 20 80 19 30 7.0 5.5 8 3 5.1 T168 0635 T169 0635
0794 5 / 16 18 90 22 34 8.0 6.2 9 3 6.6 T168 0794 T169 0794
0953 3 / 8 16 100 22 35 10.0 7.0 10 3 8.0 T168 0953 T169 0953
UNC
Size Ref. d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø Item # Item #
1111
7 / 16
14
100
24
-
8.0
6.2
8
3
9.4
• •
1270
1 / 2
13
110
28
-
9.0
7.0
10
3
10.8
T168 1270
T169 1270
1429
9 / 16
12
110
30
-
11.0
9.0
12
3
12.2
• •
1588
5 / 8
11
110
32
-
12.0
9.0
12
3
13.5
T168 1588
T169 1588
1905
3 / 4
10
125
34
-
14.0
11.0
14
4
16.5
T168 1905
T169 1905
2223
7 / 8 *
9
140
34
-
18.0
14.5
17
4
19.5
• •
2540
1 *
8
160
38
-
18.0
14.5
17
4
22.2
T168 2540
T169 2540
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T168 T169
1 2
3 4
5 6
• •
• •
• •
P 7
8 9
10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time. * HSSE > 3 / 4
M K
N
•
•
•
•
•
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
•
• •
• Optimal • Effective
