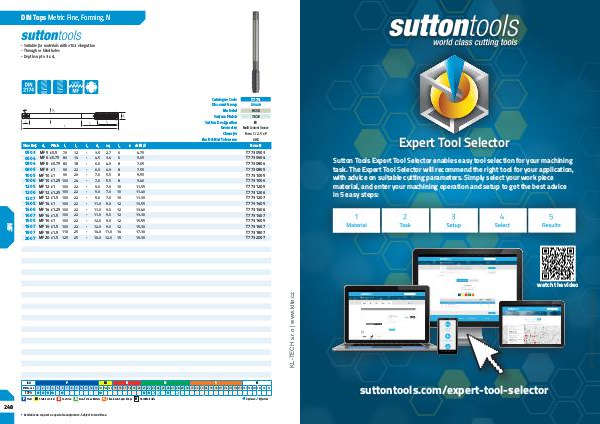

DIN Taps Metric Fine, Forming, N
- Suitable for materials with > 10 % elongation- Through or blind holes- Depths up to 3 x d 1
MF
Catalogue Code
T773
Discount Group
D0408
Material
HSSE
Surface Finish
TiCN
Sutton Designation
N
Geometry
Multi Coolant Groove
Chamfer
Form C / 2.5 x P
Limit & Nut Tolerance
6HX
Size Ref.
d 1
Pitch
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
0503
MF 5 x 0.5
70
12
-
3.5
2.7
6
4.75
T773 0503
0604
MF 6 x 0.75
80
14
-
4.5
3.4
6
5.65
T773 0604
0804
MF 8
x 0.75
80
18
-
6.0
4.9
8
7.65
T773 0804
0805
MF 8
x 1
90
22
-
6.0
4.9
8
7.55
T773 0805
1005
MF 10 x 1
90
20
-
7.0
5.5
8
9.55
T773 1005
1006
MF 10 x 1.25
100
24
-
7.0
5.5
8
9.40
T773 1006
1205
MF 12 x 1
100
22
-
9.0
7.0
10
11.55
T773 1205
1206
MF 12 x 1.25
100
22
-
9.0
7.0
10
11.40
T773 1206
1207
MF 12 x 1.5
100
22
-
9.0
7.0
10
11.30
T773 1207
1405
MF 14 x 1
100
22
-
11.0
9.0
12
13.55
T773 1405
1406
MF 14 x 1.25
100
22
-
11.0
9.0
12
13.40
T773 1406
1407
MF 14 x 1.5
100
22
-
11.0
9.0
12
13.30
T773 1407
1605
MF 16 x 1
100
22
-
12.0
9.0
12
15.55
T773 1605
1607
MF 16 x 1.5
100
22
-
12.0
9.0
12
15.30
T773 1607
1807
MF 18 x 1.5
110
25
-
14.0
11.0
14
17.30
T773 1807
2007
MF 20 x 1.5
125
25
-
16.0
12.0
15
19.30
T773 2007
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T773
1 2
3 4 5
•
•
•
•
•
P 6 7 8 9 10 11 12 13 14.1 14.2 14.3 15
•
M
K 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
•
•
•
N
•
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
248
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
• Optimal • Effective
