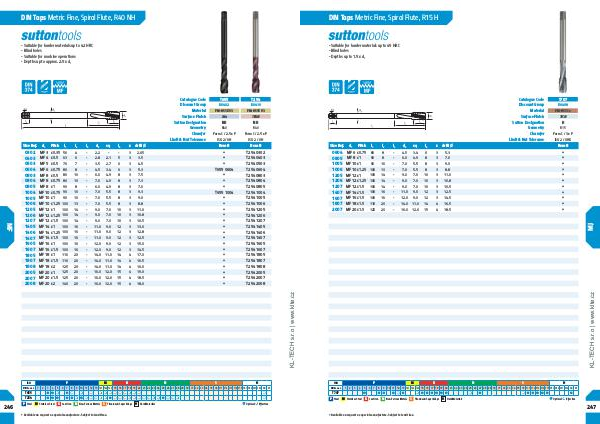

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Seite 227

DIN Taps Metric Fine, Spiral Flute, R15 H
- Suitable for harder materials up to 45 HRC
- Blind holes
- Depths up to 1.5 x d 1
Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø
MF 6 x 0.75
MF 8 x 1
MF 10 x 1
MF 10 x 1.25
MF 12 x 1
MF 12 x 1.25
MF 12 x 1.5
MF 14 x 1.5
MF 16 x 1.5
MF 18 x 1.5
MF 20 x 1.5 80 8 - 4.5 3.4 6 3 5.3
90 8 - 6.0 4.9 8 3 7.0
9.0
Size Ref.
d 1
90 10 - 7.0 5.5 8 3 100 13 - 7.0 5.5 8 3 8.8
100 14 - 9.0 7.0 10 3 11.0
100 14 - 9.0 7.0 10 3 10.8
100 14 - 9.0 7.0 10 3 10.5
100 16 - 11.0 9.0 12 3 12.5
100 16 - 12.0 9.0 12 3 14.5
110 20 - 14.0 11.0 14 4 16.5
125 20 - 16.0 12.0 15 4 18.5
D0408
PM-HSS Co
TiCN
H
R15
Form C / 3 x P
ISO 2 / 6HX
