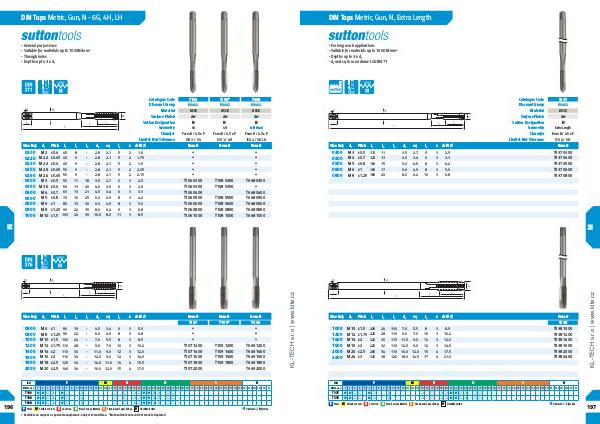

DIN Taps Metric, Gun, N- 6G, 4H, LH
196
- General purpose use- Suitable for materials up to 1000N / mm 2- Through holes- Depths up to 3 x d 1
Catalogue Code
T106
T108 *
T648
Discount Group
D0402
D0402
D0402
Material
HSSE
HSSE
HSSE
Surface Finish
Brt
Brt
Brt
Sutton Designation
N
N
N
Geometry
6G
4H
Left Hand
Chamfer
Form B / 4.5 x P
Form B / 4.5 x P
Form B / 4.5 x P
Limit & Nut Tolerance
ISO 3 / 6G
ISO 1 / 4H
ISO 2 / 6H LH
Size Ref.
d 1
Pitch
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
Item #
0200
M 2 x 0.4
45
8
-
2.8
2.1
5
2
1.6
• •
0220
M 2.2 x 0.45
45
9
-
2.8
2.1
5
2
1.75
• •
0230
M 2.3 x 0.4
45
9
-
2.8
2.1
5
2
1.9
• •
0250
M 2.5 x 0.45
50
9
-
2.8
2.1
5
2
2.05
• •
0260
M 2.6 x 0.45
50
9
-
2.8
2.1
5
2
2.15
• •
0300
M 3
x 0.5
56
11
18
3.5
2.7
6
3
2.5
T106 0300
T108 0300
T648 0300
0350
M 3.5 x 0.6
56
13
20
4.0
3.0
6
3
2.9
T106 0350
T108 0350
•
0400
M 4
x 0.7
63
13
21
4.5
3.4
6
3
3.3
T106 0400
T648 0400
0500
M 5
x 0.8
70
16
25
6.0
4.9
8
3
4.2
T106 0500
T108 0500
T648 0500
0600
M 6
x 1
80
19
30
6.0
4.9
8
3
5.0
T106 0600
T108 0600
T648 0600
0800
M 8
x 1.25
90
22
35
8.0
6.2
9
3
6.8
T106 0800
T108 0800
T648 0800
1000
M 10 x 1.5
100
24
39
10.0
8.0
11
3
8.5
T106 1000
T108 1000
T648 1000
M
Size Ref. d 1 Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø Item # Item # Item #
T107
T109 *
T649
0600
M 6 x 1
80
19
-
4.5
3.4
6
3
5.0
• •
0800
M 8 x 1.25
90
22
-
6.0
4.9
8
3
6.8
• •
1000
M 10 x 1.5
100
24
-
7.0
5.5
8
3
8.5
• •
1200
M 12 x 1.75
110
28
-
9.0
7.0
10
3
10.2
T107 1200
T109 1200
T649 1200
1400
M 14 x 2
110
30
-
11.0
9.0
12
3
12.0
T107 1400
T109 1400
T649 1400
1600
M 16 x 2
110
32
-
12.0
9.0
12
3
14.0
T107 1600
T109 1600
T649 1600
1800
M 18 x 2.5
125
34
-
14.0
11.0
14
4
15.5
T107 1800
T109 1800
T649 1800
2000
M 20 x 2.5
140
34
-
16.0
12.0
15
4
17.5
T107 2000
T649 2000
KL-TECH s. r. o | www. klte. cz
196
ISO
VDI 3323
T106 T108 T648
1 2
3 4 5
• • •
• • •
• • •
• • •
6
P
• • •
• • •
7 8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
• • •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
M
• • •
K
• • •
• • •
• • •
• • •
• • •
• • •
• • •
• Available on request as special manufacture. Subject to lead time. * Not available once current stock is depleted
N
• • •
• • •
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
