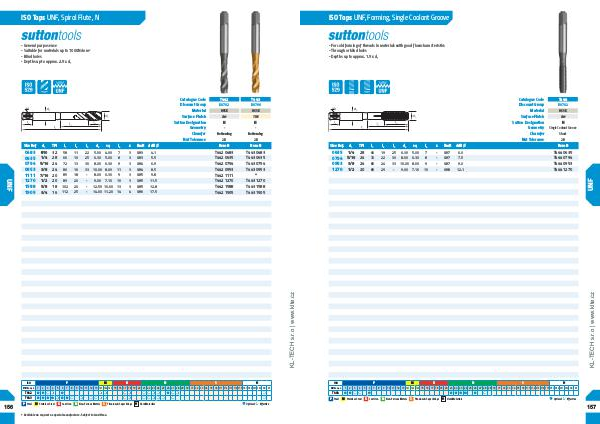

ISO Taps UNF, Spiral Flute, N
- General purpose use- Suitable for materials up to 1000N / mm 2- Blind holes- Depths up to approx. 2.5 x d 1
UNF
Catalogue Code
T442
T443
Discount Group
D0702
D0706
Material
HSSE
HSSE
Surface Finish
Brt
TiN
Sutton Designation
N
N
Geometry
-
-
Chamfer
Bottoming
Bottoming
Nut Tolerance
2B
2B
Size Ref
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
Limit
drill ø
Item #
Item #
0483
# 10
32
58
11
22
5.00
4.00
7
3
GH3
4.1
T442 0483
T443 0483
0635
1 / 4
28
66
10
25
6.30
5.00
8
3
GH3
5.5
T442 0635
T443 0635
0794
5 / 16
24
72
13
30
8.00
6.30
9
3
GH4
6.9
T442 0794
T443 0794
0953
3 / 8
24
80
16
33
10.00
8.00
11
3
GH4
8.5
T442 0953
T443 0953
1111
7 / 16
20
85
18
-
8.00
6.30
9
3
GH5
9.8
T442 1111
•
1270
1 / 2
20
89
20
-
9.00
7.10
10
3
GH5
11.5
T442 1270
T443 1270
1588
5 / 8
18
102
20
-
12.50 10.00
13
3
GH5
12.8
T442 1588
T443 1588
1905
3 / 4
16
112
25
-
14.00 11.20
14
4
GH6
17.5
T442 1905
T443 1905
KL-TECH s. r. o | www. klte. cz
156
ISO
VDI 3323
T442 T443
1 2
3 4
• •
• •
• •
• •
•
• •
•
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
•
•
• •
• •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M K
• •
• •
N
• •
• •
• •
• •
•
•
• •
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• •
• Optimal • Effective
