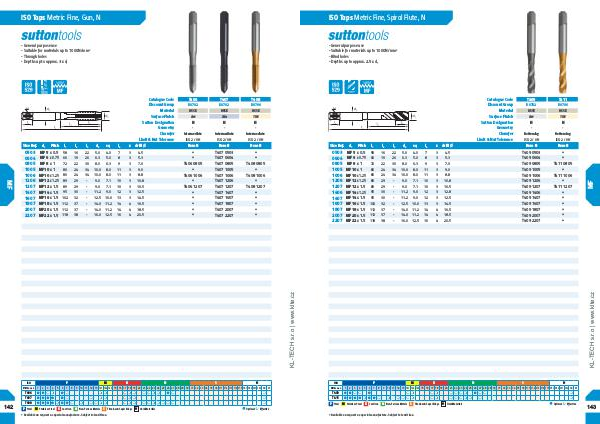

ISO Taps Metric Fine, Spiral Flute, N
- General purpose use- Suitable for materials up to 1000N / mm 2- Blind holes- Depths up to approx. 2.5 x d 1
Catalogue Code
T409
T411
Discount Group
D0702
D0706
Material
HSSE
HSSE
Surface Finish
Brt
TiN
Sutton Designation
N
N
Geometry
-
-
Chamfer
Bottoming
Bottoming
Limit & Nut Tolerance
ISO 2 / 6H
ISO 2 / 6H
Size Ref.
d 1
Pitch
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
0503
MF 5 x 0.5
58
16
22
5.0
4.0
7
3
4.5
T409 0503
•
0604
MF 6 x 0.75
66
19
26
6.3
5.0
8
3
5.3
T409 0604
•
0805
MF 8 x 1
72
22
30
8.0
6.3
9
3
7.0
T409 0805
T411 0805
1005
MF 10 x 1
80
24
34
10.0
8.0
11
3
9.0
T409 1005
•
1006
MF 10 x 1.25
80
24
34
10.0
8.0
11
3
8.8
T409 1006
T411 1006
1206
MF 12 x 1.25
89
29
-
9.0
7.1
10
3
10.8
T409 1206
•
1207
MF 12 x 1.5
89
29
-
9.0
7.1
10
3
10.5
T409 1207
T411 1207
1406
MF 14 x 1.25
95
30
-
11.2
9.0
12
3
12.8
T409 1406
•
1407
MF 14 x 1.5
95
30
-
11.2
9.0
12
3
12.5
T409 1407
•
1607
MF 16 x 1.5
102
32
-
12.5
10.0
13
3
14.5
T409 1607
•
1807
MF 18 x 1.5
112
37
-
14.0
11.2
14
4
16.5
T409 1807
•
2007
MF 20 x 1.5
112
37
-
14.0
11.2
14
4
18.5
T409 2007
•
2207
MF 22 x 1.5
118
38
-
16.0
12.5
16
4
20.5
T409 2207
•
MF
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T409 T411
1 2
3 4
• •
• •
• •
• •
•
• •
•
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
•
•
• •
• •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M K
• •
• •
N
• •
• •
• •
• •
•
•
• •
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• •
• Optimal • Effective
