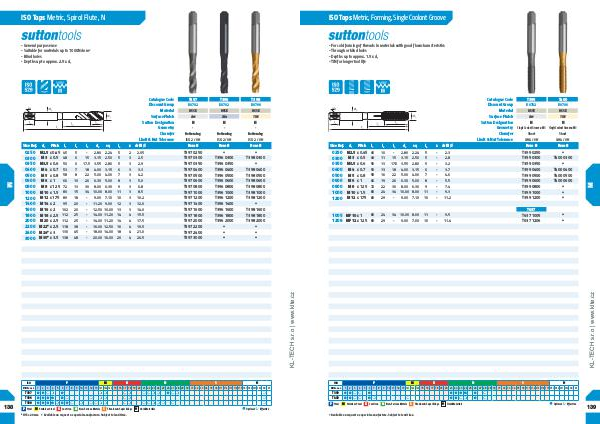

ISO Taps Metric, Spiral Flute, N
- General purpose use- Suitable for materials up to 1000N / mm 2- Blind holes- Depths up to approx. 2.5 x d 1
M
Catalogue Code
T397
T396
T398
Discount Group
D0702
D0702
D0706
Material
HSSE
HSSE
HSSE
Surface Finish
Brt
Blu
TiN
Sutton Designation
N
N
N
Geometry
-
-
-
Chamfer
Bottoming
Bottoming
Bottoming
Limit & Nut Tolerance
ISO 2 / 6H
ISO 2 / 6H
ISO 2 / 6H
Size Ref.
d 1
Pitch
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
Item #
0250
M 2.5 x 0.45
45
5
-
2.80
2.24
5
2
2.05
T397 0250
• •
0300
M 3
x 0.5
48
6
15
3.15
2.50
5
3
2.5
T397 0300
T396 0300
T398 0300
0350
M 3.5 x 0.6
50
6
17.5
3.55
2.80
5
3
2.9
T397 0350
T396 0350
•
0400
M 4
x 0.7
53
7
18
4.00
3.15
6
3
3.3
T397 0400
T396 0400
T398 0400
0500
M 5
x 0.8
58
8
22
5.00
4.00
7
3
4.2
T397 0500
T396 0500
T398 0500
0600
M 6
x 1
66
10
26
6.30
5.00
8
3
5.0
T397 0600
T396 0600
T398 0600
0800
M 8
x 1.25
72
13
30
8.00
6.30
9
3
6.8
T397 0800
T396 0800
T398 0800
1000
M 10 x 1.5
80
15
34
10.00
8.00
11
3
8.5
T397 1000
T396 1000
T398 1000
1200
M 12 x 1.75
89
18
-
9.00
7.10
10
3
10.2
T397 1200
T396 1200
T398 1200
1400
M 14 x 2
95
20
-
11.20
9.00
12
3
12.0
T397 1400
T396 1400
•
1600
M 16 x 2
102
20
-
12.50 10.00
13
3
14.0
T397 1600
T396 1600
T398 1600
1800
M 18 x 2.5
112
25
-
14.00 11.20
14
4
15.5
T397 1800
T396 1800
T398 1800
2000
M 20 x 2.5
112
25
-
14.00 11.20
14
4
17.5
T397 2000
T396 2000
T398 2000
2200
M 22 * x 2.5
118
38
-
16.00 12.50
16
4
19.5
T397 2200
• •
2400
M 24 * x 3
130
45
-
18.00 14.00
18
4
21.0
T397 2400
• •
3000
M 30 * x 3.5
138
48
-
20.00 16.00
20
4
26.5
T397 3000
• •
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T397 T396 T398
1 2
3 4
• • •
• • •
• • •
• • •
•
• • •
• •
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
• •
•
• • •
• • •
138
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
M K
• • •
• • •
* HSS > 20mm • Available on request as special manufacture. Subject to lead time.
N
• •
• •
• •
• •
•
•
• •
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• • •
• Optimal • Effective
