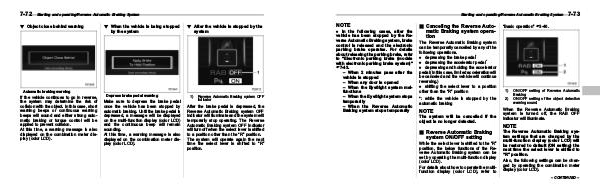

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 424

7-72
Starting and operating/Reverse Automatic Braking System
! Object close behind warning
! When the vehicle is being stopped
by the system
! After the vehicle is stopped by the
system
Automatic braking warning
If the vehicle continues to go in reverse,
the system may determine the risk of
collision with the object. In this case, short
warning beeps or continuous warning
beeps will sound and either strong auto-
matic braking or torque control will be
applied to prevent collision.
At this time, a warning message is also
displayed on the combination meter dis-
play (color LCD).
Depress brake pedal warning
Make sure to depress the brake pedal
once the vehicle has been stopped by
automatic braking. Until the brake pedal is
depressed, a message will be displayed
on the multi-function display (color LCD)
and the continuous beep will remain
sounding.
At this time, a warning message is also
displayed on the combination meter dis-
play (color LCD).
1)
Reverse Automatic Braking system OFF
indicator
After the brake pedal is depressed, the
Reverse Automatic Braking system OFF
indicator will illuminate and the system will
temporarily stop operating. The Reverse
Automatic Braking system OFF indicator
will turn off when the select lever is shifted
to a position other than the “R” position.
The system will operate again the next
time the select lever is shifted to “R”
position.
