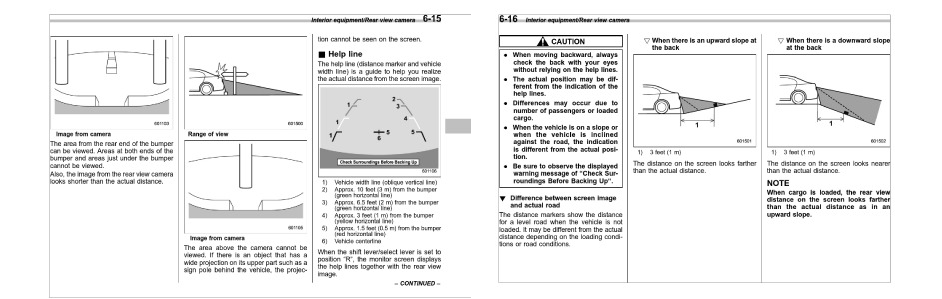

Interior equipment/Rear view camera

6-15

tion cannot be seen on the screen.

& Help line
The help line (distance marker and vehicle
width line) is a guide to help you realize
the actual distance from the screen image.

Image from camera

Range of view

The area from the rear end of the bumper
can be viewed. Areas at both ends of the
bumper and areas just under the bumper
cannot be viewed.
Also, the image from the rear view camera
looks shorter than the actual distance.

1)
2)
3)
4)
5)
Image from camera

The area above the camera cannot be
viewed. If there is an object that has a
wide projection on its upper part such as a
sign pole behind the vehicle, the projec-

6)

Vehicle width line (oblique vertical line)
Approx. 10 feet (3 m) from the bumper
(green horizontal line)
Approx. 6.5 feet (2 m) from the bumper
(green horizontal line)
Approx. 3 feet (1 m) from the bumper
(yellow horizontal line)
Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
Vehicle centerline

When the shift lever/select lever is set to
position “R”, the monitor screen displays
the help lines together with the rear view
image.
– CONTINUED –
