Instruments and controls/Multi function display

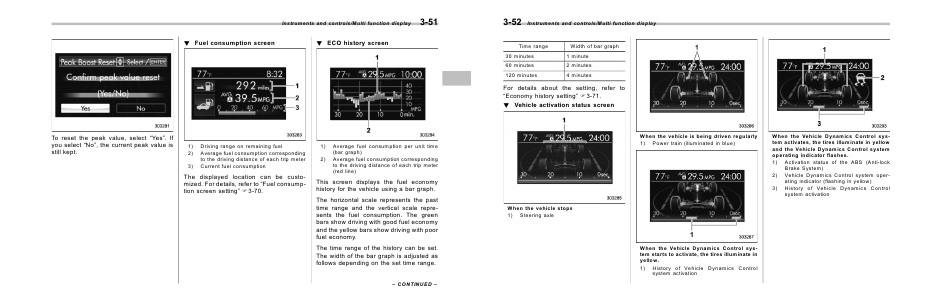

! Fuel consumption screen

To reset the peak value, select “Yes”. If
you select “No”, the current peak value is
still kept.

1)
2)
3)

Driving range on remaining fuel
Average fuel consumption corresponding
to the driving distance of each trip meter
Current fuel consumption

The displayed location can be customized. For details, refer to “Fuel consumption screen setting” F3-70.

3-51

! ECO history screen

1)
2)

Average fuel consumption per unit time
(bar graph)
Average fuel consumption corresponding
to the driving distance of each trip meter
(red line)

This screen displays the fuel economy
history for the vehicle using a bar graph.
The horizontal scale represents the past
time range and the vertical scale represents the fuel consumption. The green
bars show driving with good fuel economy
and the yellow bars show driving with poor
fuel economy.
The time range of the history can be set.
The width of the bar graph is adjusted as
follows depending on the set time range.
– CONTINUED –
