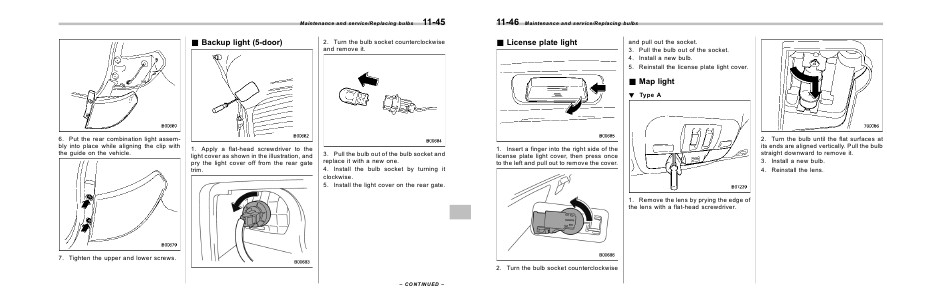

11-46

Maintenance and service/Replacing bulbs

& License plate light

and pull out the socket.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the license plate light cover.

& Map light
! Type A

2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the bulb
straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.

1. Insert a finger into the right side of the
license plate light cover, then press once
to the left and pull out to remove the cover.

1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.

2. Turn the bulb socket counterclockwise
