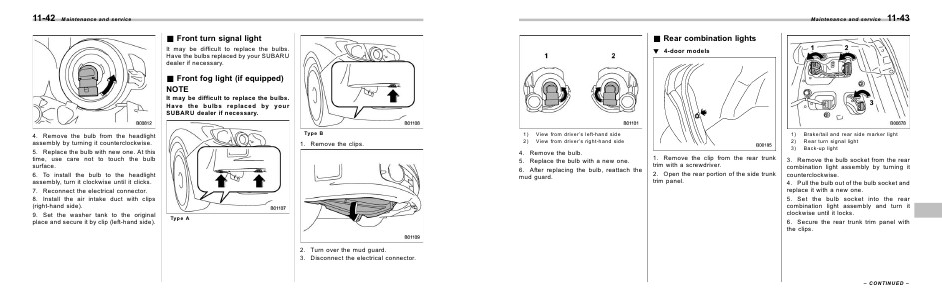

Subaru WRX & WRX STI Manuals 2012 Impreza WRX & WRX STI Owner's Manual | Page 365

Maintenance and service

11-43

& Rear combination lights
! 4-door models

1)
2)

View from driver’s left-hand side
View from driver’s right-hand side

4. Remove the bulb.
5. Replace the bulb with a new one.
6. After replacing the bulb, reattach the
mud guard.

1)
2)
3)

1. Remove the clip from the rear trunk
trim with a screwdriver.
2. Open the rear portion of the side trunk
trim panel.

Brake/tail and rear side marker light
Rear turn signal light
Back-up light

3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Secure the rear trunk trim panel with
the clips.

– CONTINUED –
