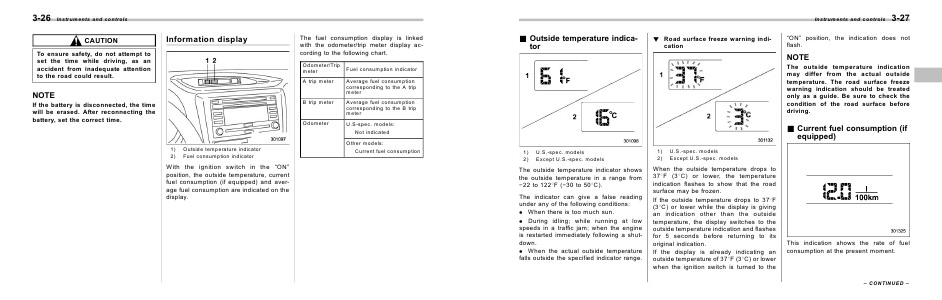

Subaru WRX & WRX STI Manuals 2012 Impreza WRX & WRX STI Owner's Manual | Page 144

3-26

Instruments and controls

CAUTION

Information display

To ensure safety, do not attempt to
set the time while driving, as an
accident from inadequate attention
to the road could result.

The fuel consumption display is linked
with the odometer/trip meter display according to the following chart.
Odometer/Trip
meter

Fuel consumption indicator

A trip meter
B trip meter

If the battery is disconnected, the time
will be erased. After reconnecting the
battery, set the correct time.

1)
2)

Outside temperature indicator
Fuel consumption indicator

With the ignition switch in the “ON”
position, the outside temperature, current
fuel consumption (if equipped) and average fuel consumption are indicated on the
display.

Average fuel consumption
corresponding to the B trip
meter

Odometer

NOTE

Average fuel consumption
corresponding to the A trip
meter

U.S-spec. models:
Not indicated
Other models:
Current fuel consumption
