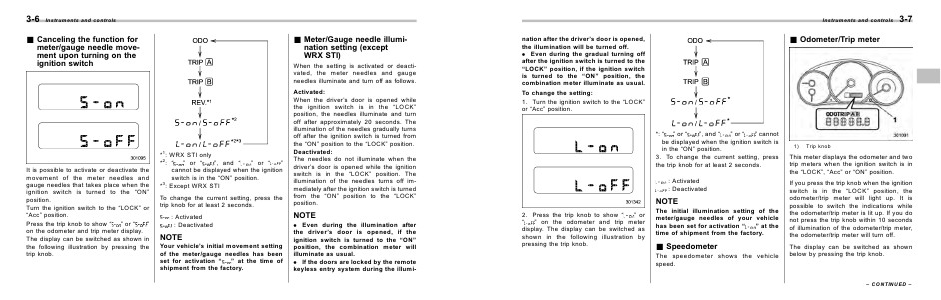

Subaru WRX & WRX STI Manuals 2010 Impreza WRX & WRX STI Owner’s Manual | Page 126

3-6

Instruments and controls

& Canceling the function for
meter/gauge needle movement upon turning on the
ignition switch

It is possible to activate or deactivate the
movement of the meter needles and
gauge needles that takes place when the
ignition switch is turned to the “ON”
position.
Turn the ignition switch to the “LOCK” or
“Acc” position.
Press the trip knob to show “ ” or “
”
on the odometer and trip meter display.
The display can be switched as shown in
the following illustration by pressing the
trip knob.

& Meter/Gauge needle illumination setting (except
WRX STI)
When the setting is activated or deactivated, the meter needles and gauge
needles illuminate and turn off as follows.

*1: WRX STI only
*2: “ ” or “
”, and “
” or “
”
cannot be displayed when the ignition
switch is in the “ON” position.
*3: Except WRX STI
To change the current setting, press the
trip knob for at least 2 seconds.
: Activated
: Deactivated

NOTE
Your vehicle’s initial movement setting
of the meter/gauge needles has been
set for activation “ ” at the time of
shipment from the factory.

Activated:
When the driver’s door is opened while
the ignition switch is in the “LOCK”
position, the needles illuminate and turn
off
