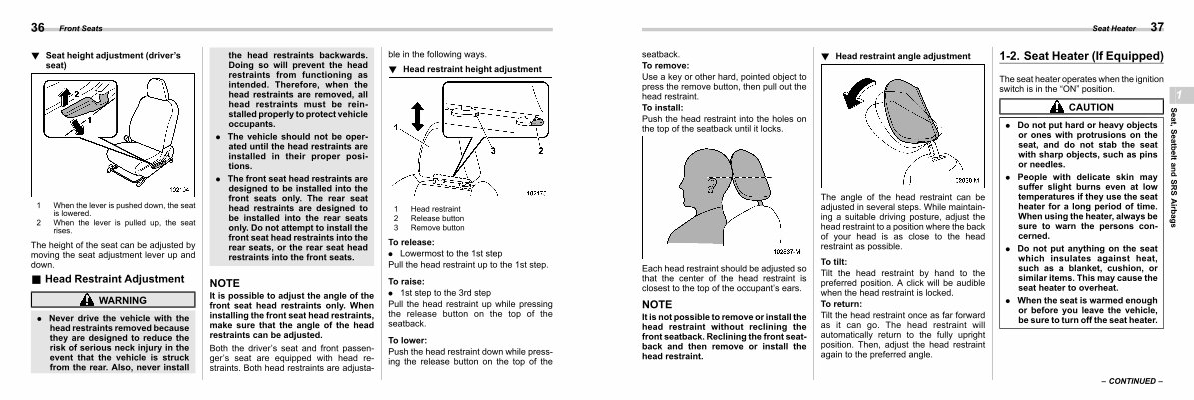

36
Front Seats
! Seat height adjustment ( driver ’ s seat ) s01aa0103
1 When the lever is pushed down , the seat is lowered .
2 When the lever is pulled up , the seat rises .
The height of the seat can be adjusted by moving the seat adjustment lever up and down .
& Head Restraint Adjustment s01aa04
WARNING
. Never drive the vehicle with the head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear . Also , never install the head restraints backwards . Doing so will prevent the head restraints from functioning as intended . Therefore , when the head restraints are removed , all head restraints must be reinstalled properly to protect vehicle occupants .
. The vehicle should not be operated until the head restraints are installed in their proper positions .
. The front seat head restraints are designed to be installed into the front seats only . The rear seat head restraints are designed to be installed into the rear seats only . Do not attempt to install the front seat head restraints into the rear seats , or the rear seat head restraints into the front seats .
NOTE
It is possible to adjust the angle of the front seat head restraints only . When installing the front seat head restraints , make sure that the angle of the head restraints can be adjusted .
Both the driver ’ s seat and front passenger ’ s seat are equipped with head restraints . Both head restraints are adjustable in the following ways .
! Head restraint height adjustment s01aa0401
1 Head restraint 2 Release button 3 Remove button
To release : . Lowermost to the 1st step Pull the head restraint up to the 1st step .
To raise : . 1st step to the 3rd step
Pull the head restraint up while pressing the release button on the top of the seatback .
To lower :
Push the head restraint down while pressing the release button on the top of the
