338
Rear View Camera
Hill start assist OFF indicator light
7 . Within 2 seconds , press back the Vehicle Dynamics Control OFF switch . The Hill start assist OFF indicator light turns on and off .
8 . Turn the ignition switch to the “ LOCK ”/ “ OFF ” position . The Hill start assist system is deactivated .
NOTE
When the Hill start assist system is deactivated , the Hill start assist OFF indicator light illuminates continuously .
! To reactivate s07au0202
To reactivate the Hill start assist system , repeat steps 1 to 8 . When the Hill start assist system is activated , the Hill start assist OFF indicator light turns off .
& Hill Start Assist Warning Light / Hill Start Assist OFF Indicator Light ( MT Models )
s07au01
Refer to “ Hill Start Assist Warning Light / Hill Start Assist OFF Indicator Light ( MT Models )” FP163 .

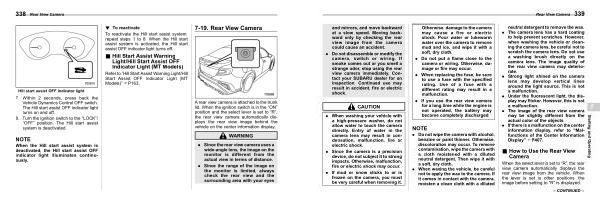

7-19 . Rear View Camera s07br
A rear view camera is attached to the trunk lid . When the ignition switch is in the “ ON ” position and the select lever is set to “ R ”, the rear view camera automatically displays the rear view image behind the vehicle on the center information display .
WARNING
. Since the rear view camera uses a wide-angle lens , the image on the monitor is different from the actual view in terms of distance .
. Since the range of the image on the monitor is limited , always check the rear view and the surrounding area with your eyes
