182

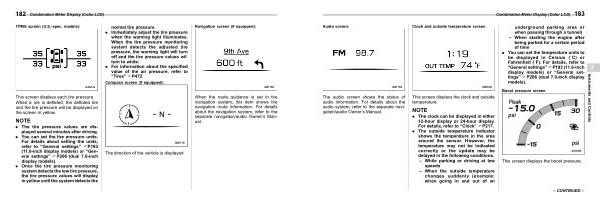

Combination Meter Display ( Color LCD )
TPMS screen ( U . S . -spec . models ):
normal tire pressure .
. Immediately adjust the tire pressure when the warning light illuminates . When the tire pressure monitoring system detects the adjusted tire pressure , the warning light will turn off and the tire pressure values will turn to white .
. For information about the specified value of the air pressure , refer to “ Tires ” FP472 .
Compass screen ( if equipped ):
Navigation screen ( if equipped ):
This screen displays each tire pressure .
When a tire is deflated , the deflated tire and the tire pressure will be displayed on the screen in yellow .
NOTE
. The tire pressure values are displayed several minutes after driving .
. You can set the tire pressure units . For details about setting the units , refer to “ General settings ” FP193 ( 11.6-inch display models ) or “ General settings ” FP206 ( dual 7.0-inch display models ).
. Once the tire pressure monitoring system detects the low tire pressure , the tire pressure values will display in yellow until the system detects the
The direction of the vehicle is displayed .
When the route guidance is set in the navigation system , this item shows the navigation route information . For details about the navigation system , refer to the separate navigation / audio Owner ’ s Manual .
