180

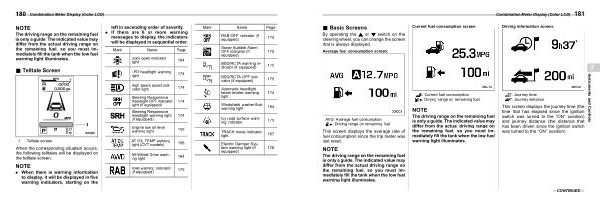

Combination Meter Display ( Color LCD )
NOTE
The driving range on the remaining fuel is only a guide . The indicated value may differ from the actual driving range on the remaining fuel , so you must immediately fill the tank when the low fuel warning light illuminates .
& Telltale Screen
1 Telltale screen s03bn09
When the corresponding situation occurs , the following telltales will be displayed on the telltale screen .
NOTE
. When there is warning information to display , it will be displayed in five warning indicators , starting on the
left in ascending order of severity .
. If there are 6 or more warning messages to display , the indicators will be displayed in sequential order .
Mark Name Page
Door open indicator light
LED headlight warning light
High beam assist indicator light
Steering Responsive Headlight OFF indicator light ( if equipped )
Steering Responsive Headlight warning light ( if equipped )
Engine low oil level warning light
AT OIL TEMP warning light ( CVT models )
All-Wheel Drive warning light
RAB warning indicator ( if equipped )
164
174
174
174
174
158
158
164
175
Mark Name Page
RAB OFF indicator ( if equipped )
Sonar Audible Alarm OFF indicator ( if equipped )
BSD / RCTA warning indicator ( if equipped )
BSD / RCTA OFF indicator ( if equipped )
Automatic headlight beam leveler warning light
Windshield washer fluid warning light
Icy road surface warning indicator
TRACK mode indicator light
Electric Damper System warning light ( if equipped )
175
175
175
175
174
164
175
167
176
