8-2. Panoramic view monitor
view( including zoomed display), side clearance view, and cornering view may differ to the actual positions.
● Light from a back-lit license plate may appear on the screen.
● Images indicated by [ ○ ] in the figure are a composite, and hence some areas may be difficult to see.

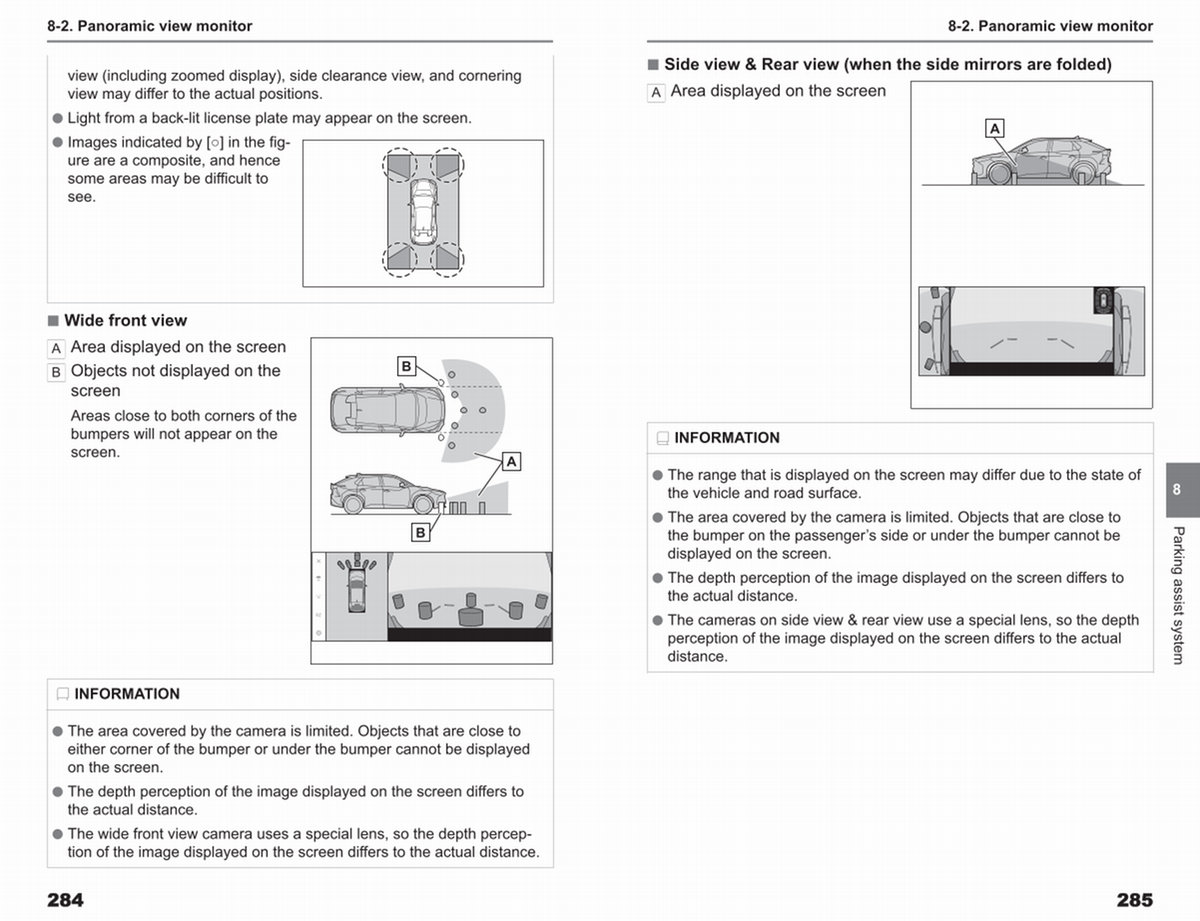

■ Wide front view
A Area displayed on the screen
B Objects not displayed on the screen
Areas close to both corners of the bumpers will not appear on the screen.
INFORMATION
● The area covered by the camera is limited. Objects that are close to either corner of the bumper or under the bumper cannot be displayed on the screen.
● The depth perception of the image displayed on the screen differs to the actual distance.
● The wide front view camera uses a special lens, so the depth perception of the image displayed on the screen differs to the actual distance.
284
