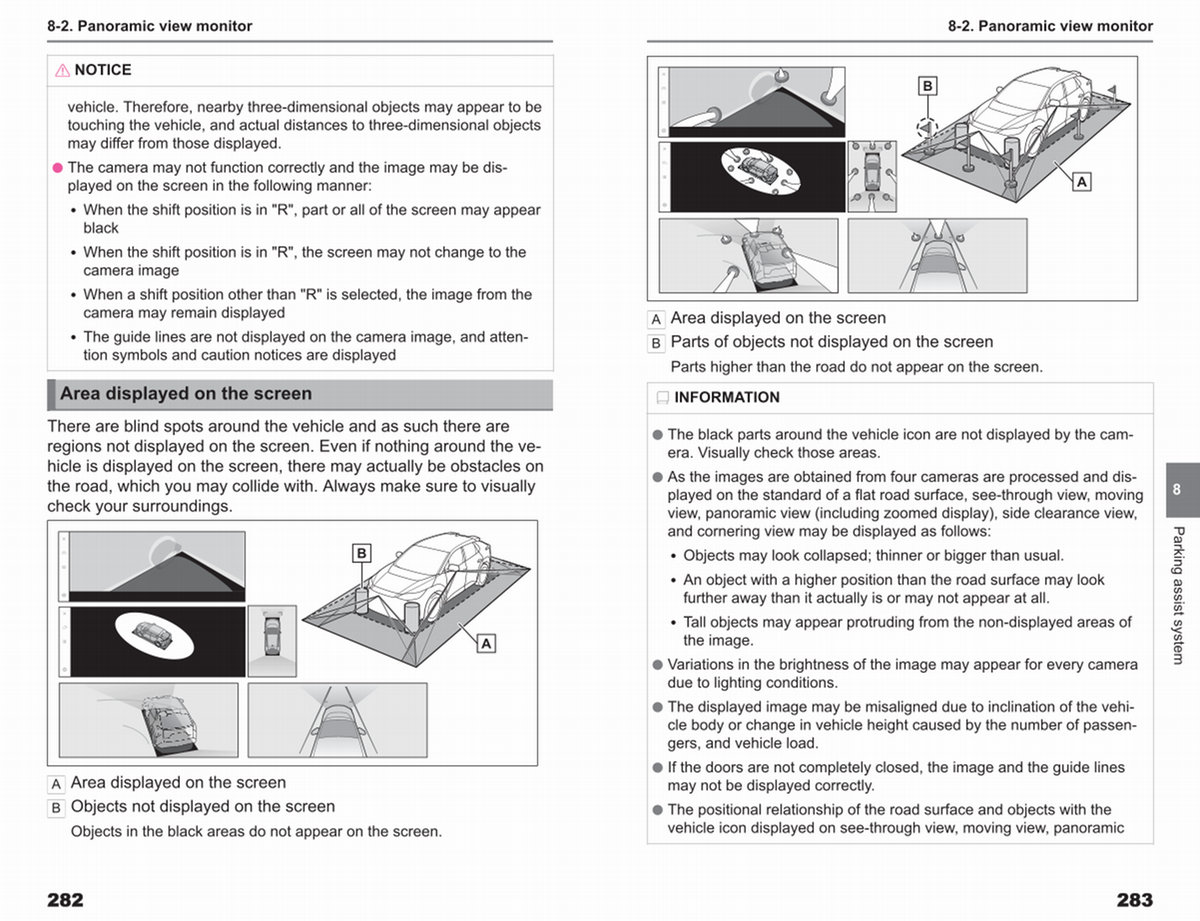

8-2. Panoramic view monitor
A Area displayed on the screen
B Parts of objects not displayed on the screen Parts higher than the road do not appear on the screen.
INFORMATION
● The black parts around the vehicle icon are not displayed by the camera. Visually check those areas.
● As the images are obtained from four cameras are processed and displayed on the standard of a flat road surface, see-through view, moving view, panoramic view( including zoomed display), side clearance view, and cornering view may be displayed as follows:
• Objects may look collapsed; thinner or bigger than usual.
• An object with a higher position than the road surface may look further away than it actually is or may not appear at all.
• Tall objects may appear protruding from the non-displayed areas of the image.
● Variations in the brightness of the image may appear for every camera due to lighting conditions.
● The displayed image may be misaligned due to inclination of the vehicle body or change in vehicle height caused by the number of passengers, and vehicle load.
● If the doors are not completely closed, the image and the guide lines may not be displayed correctly.
● The positional relationship of the road surface and objects with the vehicle icon displayed on see-through view, moving view, panoramic
