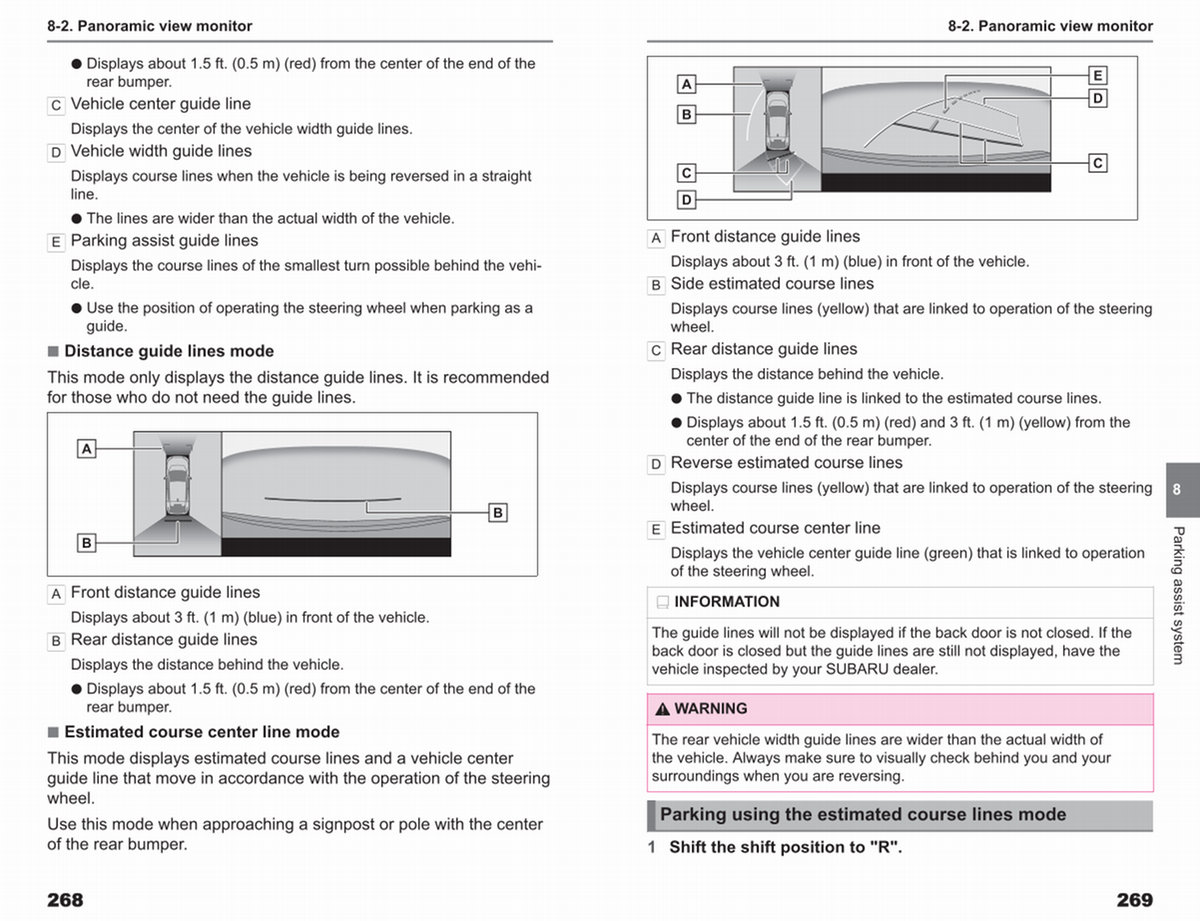

8-2. Panoramic view monitor
● Displays about 1.5 ft.( 0.5 m)( red) from the center of the end of the rear bumper.
C Vehicle center guide line Displays the center of the vehicle width guide lines.
D Vehicle width guide lines
Displays course lines when the vehicle is being reversed in a straight line.
● The lines are wider than the actual width of the vehicle.
E Parking assist guide lines
Displays the course lines of the smallest turn possible behind the vehicle.
● Use the position of operating the steering wheel when parking as a guide.
■ Distance guide lines mode
This mode only displays the distance guide lines. It is recommended for those who do not need the guide lines.
A Front distance guide lines Displays about 3 ft.( 1 m)( blue) in front of the vehicle.
B Rear distance guide lines Displays the distance behind the vehicle.
● Displays about 1.5 ft.( 0.5 m)( red) from the center of the end of the rear bumper.
■ Estimated course center line mode
This mode displays estimated course lines and a vehicle center guide line that move in accordance with the operation of the steering wheel.
Use this mode when approaching a signpost or pole with the center of the rear bumper.
268
