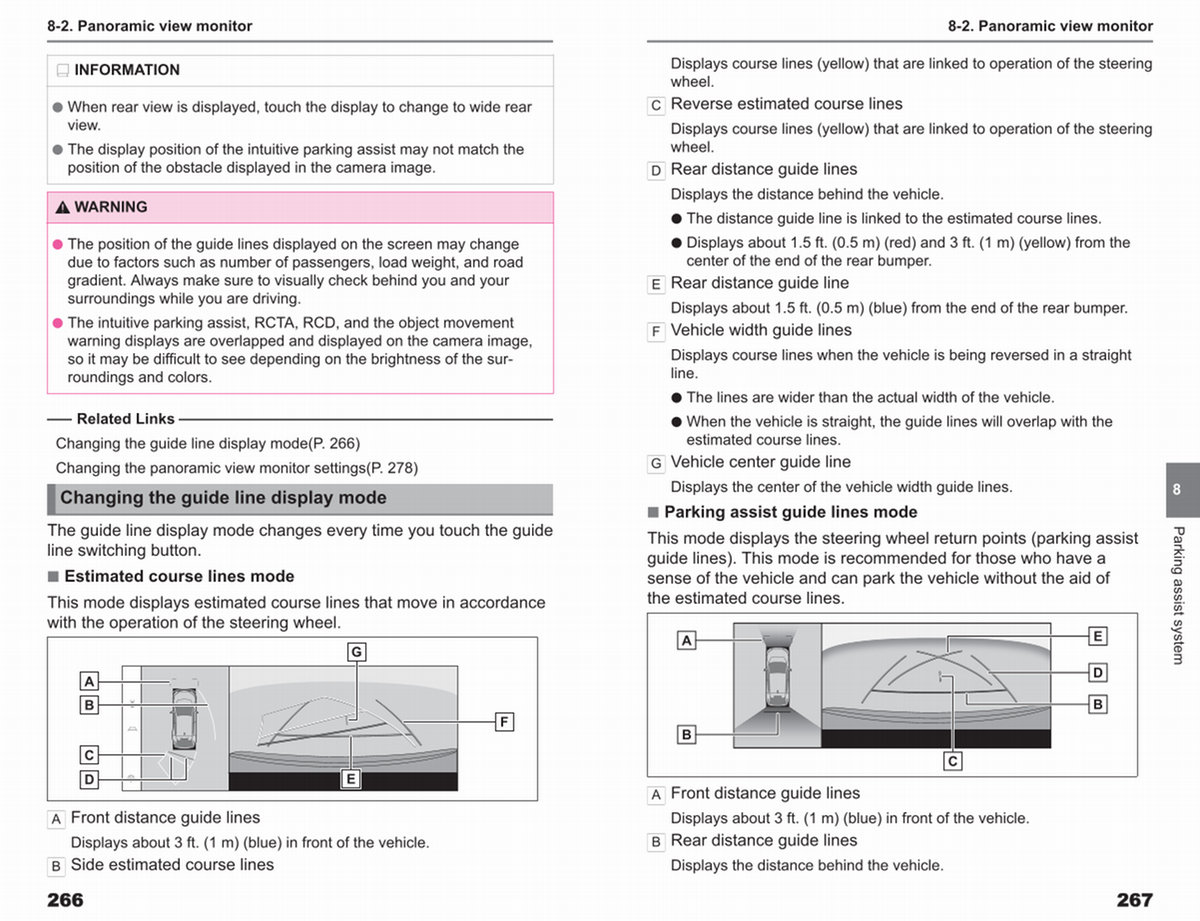

8-2. Panoramic view monitor
Displays course lines( yellow) that are linked to operation of the steering wheel.
C Reverse estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
D Rear distance guide lines Displays the distance behind the vehicle.
● The distance guide line is linked to the estimated course lines.
● Displays about 1.5 ft.( 0.5 m)( red) and 3 ft.( 1 m)( yellow) from the center of the end of the rear bumper.
E Rear distance guide line
F
Displays about 1.5 ft.( 0.5 m)( blue) from the end of the rear bumper. Vehicle width guide lines
Displays course lines when the vehicle is being reversed in a straight line.
● The lines are wider than the actual width of the vehicle.
● When the vehicle is straight, the guide lines will overlap with the estimated course lines.
G Vehicle center guide line Displays the center of the vehicle width guide lines.
■ Parking assist guide lines mode
This mode displays the steering wheel return points( parking assist guide lines). This mode is recommended for those who have a sense of the vehicle and can park the vehicle without the aid of the estimated course lines.
8
Parking assist system
A Front distance guide lines Displays about 3 ft.( 1 m)( blue) in front of the vehicle.
B Rear distance guide lines Displays the distance behind the vehicle.
267
