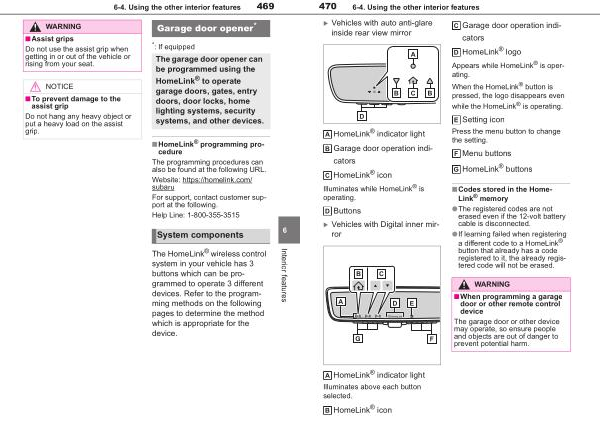

470 6-4 . Using the other interior features
� Vehicles with auto anti-glare inside rear view mirror
Garage door operation indicators HomeLink ® logo
Appears while HomeLink ® is operating .
HomeLink ® indicator light Garage door operation indicators HomeLink ® icon
Illuminates while HomeLink ® is operating .
Buttons
� Vehicles with Digital inner mirror
When the HomeLink ® button is pressed , the logo disappears even
while the HomeLink ® is operating . Setting icon
Press the menu button to change the setting .
Menu buttons HomeLink ® buttons
■ Codes stored in the Home- Link ® memory
●The registered codes are not
erased even if the 12-volt battery cable is disconnected .
●If learning failed when registering a different code to a HomeLink ® button that already has a code
registered to it , the already registered code will not be erased .
WARNING
■ When programming a garage door or other remote control device
The garage door or other device may operate , so ensure people
and objects are out of danger to prevent potential harm .
HomeLink ® indicator light
Illuminates above each button selected .
HomeLink ® icon
