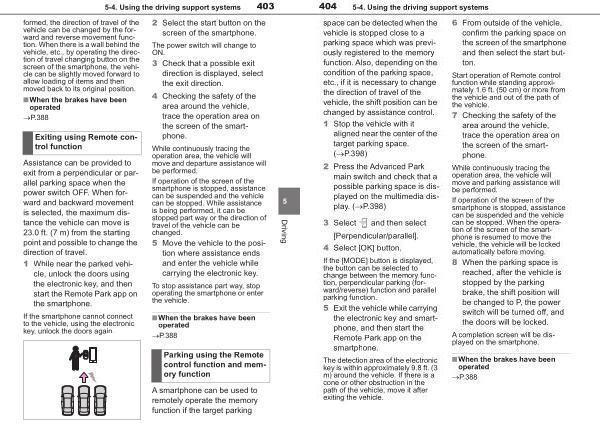

404 5-4 . Using the driving support systems
space can be detected when the vehicle is stopped close to a parking space which was previously registered to the memory function . Also , depending on the condition of the parking space , etc ., if it is necessary to change the direction of travel of the vehicle , the shift position can be changed by assistance control . 1 Stop the vehicle with it aligned near the center of the target parking space . ( �P . 398 )
2 Press the Advanced Park main switch and check that a possible parking space is displayed on the multimedia display . ( �P . 398 )
3 Select and then select
[ Perpendicular / parallel ]. 4 Select [ OK ] button .
If the [ MODE ] button is displayed , the button can be selected to change between the memory function , perpendicular parking ( forward / reverse ) function and parallel parking function .
5 Exit the vehicle while carrying the electronic key and smartphone , and then start the Remote Park app on the smartphone .
The detection area of the electronic key is within approximately 9.8 ft . ( 3 m ) around the vehicle . If there is a cone or other obstruction in the
path of the vehicle , move it after exiting the vehicle .
6 From outside of the vehicle , confirm the parking space on the screen of the smartphone and then select the start button .
Start operation of Remote control function while standing approximately 1.6 ft . ( 50 cm ) or more from
the vehicle and out of the path of the vehicle .
7 Checking the safety of the area around the vehicle , trace the operation area on the screen of the smartphone .
While continuously tracing the
operation area , the vehicle will move and parking assistance will be performed .
If operation of the screen of the smartphone is stopped , assistance
can be suspended and the vehicle can be stopped . When the operation of the screen of the smartphone is resumed to move the vehicle , the vehicle will be locked automatically before moving .
8 When the parking space is reached , after the vehicle is stopped by the parking brake , the shift position will be changed to P , the power switch will be turned off , and the doors will be locked .
A completion screen will be displayed on the smartphone .
■ When the brakes have been operated
�P . 388
