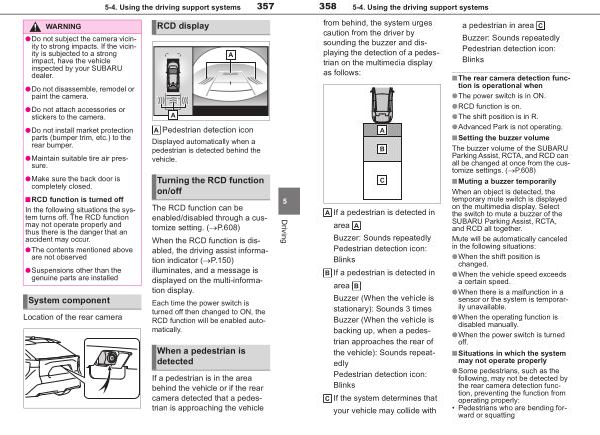

358 5-4 . Using the driving support systems
from behind , the system urges caution from the driver by sounding the buzzer and displaying the detection of a pedestrian on the multimedia display as follows :
If a pedestrian is detected in area Buzzer : Sounds repeatedly Pedestrian detection icon : Blinks If a pedestrian is detected in area Buzzer ( When the vehicle is stationary ): Sounds 3 times Buzzer ( When the vehicle is backing up , when a pedestrian approaches the rear of the vehicle ): Sounds repeatedly Pedestrian detection icon : Blinks If the system determines that your vehicle may collide with a pedestrian in area Buzzer : Sounds repeatedly Pedestrian detection icon : Blinks
■ The rear camera detection function is operational when
●The power switch is in ON . ●RCD function is on . ●The shift position is in R .
● Advanced Park is not operating .
■ Setting the buzzer volume
The buzzer volume of the SUBARU Parking Assist , RCTA , and RCD can
all be changed at once from the customize settings . ( �P . 608 )
■ Muting a buzzer temporarily
When an object is detected , the temporary mute switch is displayed on the multimedia display . Select
the switch to mute a buzzer of the SUBARU Parking Assist , RCTA , and RCD all together .
Mute will be automatically canceled in the following situations :
●When the shift position is changed .
●When the vehicle speed exceeds a certain speed .
●When there is a malfunction in a sensor or the system is temporarily unavailable .
●When the operating function is disabled manually .
●When the power switch is turned off .
■ Situations in which the system may not operate properly
●Some pedestrians , such as the following , may not be detected by the rear camera detection function , preventing the function from operating properly :
• Pedestrians who are bending forward or squatting
