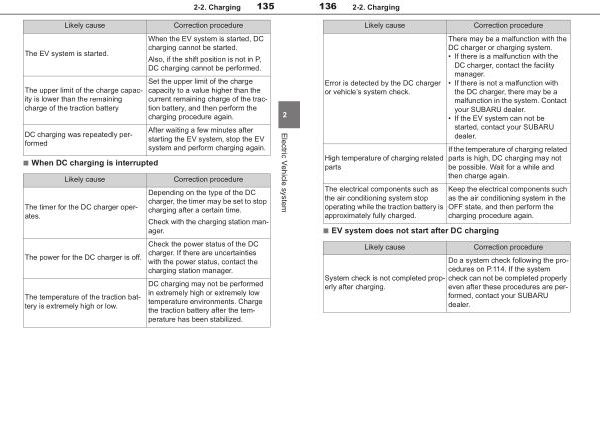

2-2 . Charging
135
Likely cause
The EV system is started .
The upper limit of the charge capacity is lower than the remaining charge of the traction battery
DC charging was repeatedly performed
■ When DC charging is interrupted Likely cause
The timer for the DC charger operates .
The power for the DC charger is off .
The temperature of the traction battery is extremely high or low .
Correction procedure
When the EV system is started , DC charging cannot be started .
Also , if the shift position is not in P , DC charging cannot be performed .
Set the upper limit of the charge capacity to a value higher than the current remaining charge of the traction battery , and then perform the charging procedure again .
After waiting a few minutes after starting the EV system , stop the EV system and perform charging again .
Correction procedure
Depending on the type of the DC charger , the timer may be set to stop charging after a certain time .
Check with the charging station manager .
Check the power status of the DC charger . If there are uncertainties with the power status , contact the charging station manager .
DC charging may not be performed in extremely high or extremely low temperature environments . Charge the traction battery after the temperature has been stabilized .
2
Electric Vehicle system
