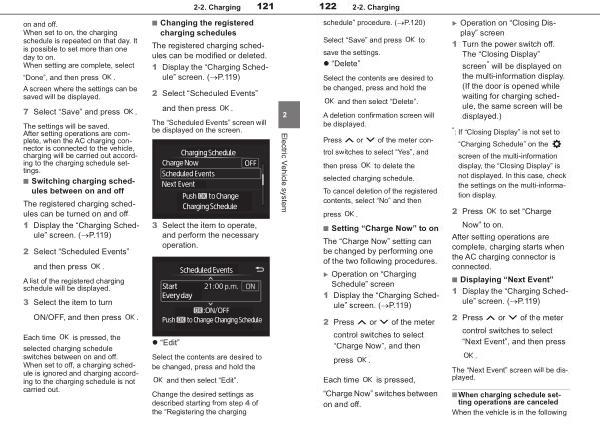

2-2 . Charging
121 on and off . When set to on , the charging schedule is repeated on that day . It is possible to set more than one day to on . When setting are complete , select
“ Done ”, and then press .
A screen where the settings can be saved will be displayed .
7 Select “ Save ” and press .
The settings will be saved . After setting operations are complete , when the AC charging connector is connected to the vehicle , charging will be carried out according to the charging schedule settings .
■ Switching charging schedules between on and off
The registered charging schedules can be turned on and off . 1 Display the “ Charging Schedule ” screen . ( �P . 119 )
2 Select “ Scheduled Events ” and then press .
A list of the registered charging schedule will be displayed .
3 Select the item to turn ON / OFF , and then press .
■ Changing the registered charging schedules
The registered charging schedules can be modified or deleted . 1 Display the “ Charging Schedule ” screen . ( �P . 119 )
2 Select “ Scheduled Events ” and then press .
The “ Scheduled Events ” screen will be displayed on the screen .
3 Select the item to operate , and perform the necessary operation .
2
Electric Vehicle system
Each time is pressed , the
selected charging schedule switches between on and off . When set to off , a charging schedule is ignored and charging according to the charging schedule is not carried out .
• “ Edit ”
Select the contents are desired to be changed , press and hold the
and then select “ Edit ”.
Change the desired settings as described starting from step 4 of the “ Registering the charging
