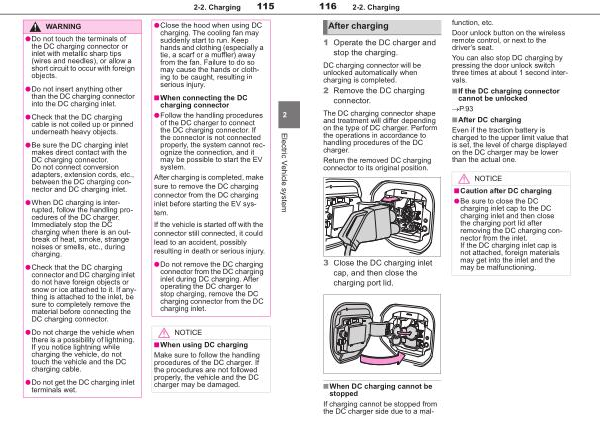

116 2-2 . Charging After charging
1 Operate the DC charger and stop the charging .
DC charging connector will be unlocked automatically when
charging is completed .
2 Remove the DC charging connector .
The DC charging connector shape and treatment will differ depending on the type of DC charger . Perform
the operations in accordance to handling procedures of the DC charger .
Return the removed DC charging connector to its original position .
3 Close the DC charging inlet cap , and then close the charging port lid .
■ When DC charging cannot be stopped
If charging cannot be stopped from the DC charger side due to a malfunction , etc .
Door unlock button on the wireless remote control , or next to the driver ’ s seat .
You can also stop DC charging by pressing the door unlock switch three times at about 1 second intervals .
■ If the DC charging connector cannot be unlocked
�P . 93
■ After DC charging
Even if the traction battery is charged to the upper limit value that is set , the level of charge displayed on the DC charger may be lower than the actual one .
NOTICE
■ Caution after DC charging
●Be sure to close the DC charging inlet cap to the DC charging inlet and then close the charging port lid after removing the DC charging connector from the inlet . If the DC charging inlet cap is not attached , foreign materials
may get into the inlet and the may be malfunctioning .
