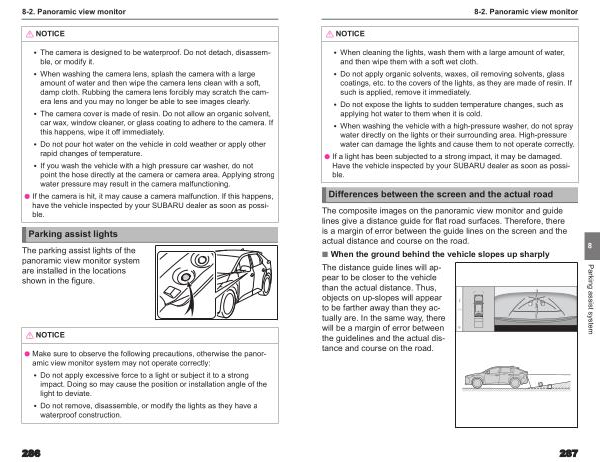

8-2 . Panoramic view monitor
NOTICE
• When cleaning the lights , wash them with a large amount of water , and then wipe them with a soft wet cloth .
• Do not apply organic solvents , waxes , oil removing solvents , glass coatings , etc . to the covers of the lights , as they are made of resin . If such is applied , remove it immediately .
• Do not expose the lights to sudden temperature changes , such as applying hot water to them when it is cold .
• When washing the vehicle with a high-pressure washer , do not spray water directly on the lights or their surrounding area . High-pressure water can damage the lights and cause them to not operate correctly .
● If a light has been subjected to a strong impact , it may be damaged . Have the vehicle inspected by your SUBARU dealer as soon as possible .
Differences between the screen and the actual road
The composite images on the panoramic view monitor and guide lines give a distance guide for flat road surfaces . Therefore , there is a margin of error between the guide lines on the screen and the actual distance and course on the road .
■ When the ground behind the vehicle slopes up sharply
The distance guide lines will appear to be closer to the vehicle than the actual distance . Thus , objects on up-slopes will appear to be farther away than they actually are . In the same way , there will be a margin of error between the guidelines and the actual distance and course on the road .
8
Parking assist system
287
