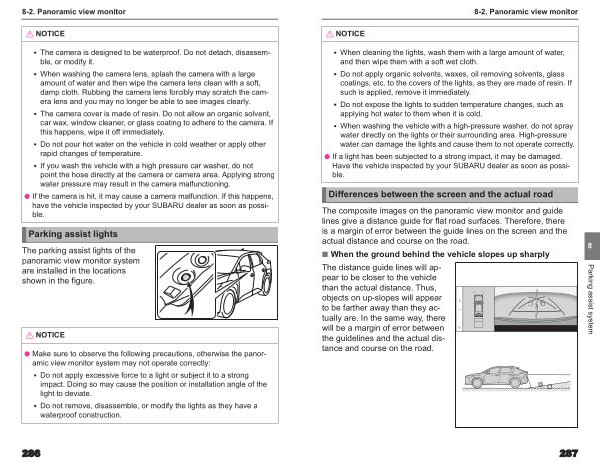

8-2 . Panoramic view monitor
NOTICE
• The camera is designed to be waterproof . Do not detach , disassemble , or modify it .
• When washing the camera lens , splash the camera with a large amount of water and then wipe the camera lens clean with a soft , damp cloth . Rubbing the camera lens forcibly may scratch the camera lens and you may no longer be able to see images clearly .
• The camera cover is made of resin . Do not allow an organic solvent , car wax , window cleaner , or glass coating to adhere to the camera . If this happens , wipe it off immediately .
• Do not pour hot water on the vehicle in cold weather or apply other rapid changes of temperature .
• If you wash the vehicle with a high pressure car washer , do not point the hose directly at the camera or camera area . Applying strong water pressure may result in the camera malfunctioning .
● If the camera is hit , it may cause a camera malfunction . If this happens , have the vehicle inspected by your SUBARU dealer as soon as possible .
Parking assist lights
The parking assist lights of the panoramic view monitor system are installed in the locations shown in the figure .
NOTICE
● Make sure to observe the following precautions , otherwise the panoramic view monitor system may not operate correctly :
• Do not apply excessive force to a light or subject it to a strong impact . Doing so may cause the position or installation angle of the light to deviate .
• Do not remove , disassemble , or modify the lights as they have a waterproof construction .
286
