8-2 . Panoramic view monitor
view ( including zoomed display ), side clearance view , and cornering view may differ to the actual positions .
● Light from a back-lit license plate may appear on the screen .
● Images indicated by [ ○ ] in the figure are a composite , and hence some areas may be difficult to see .

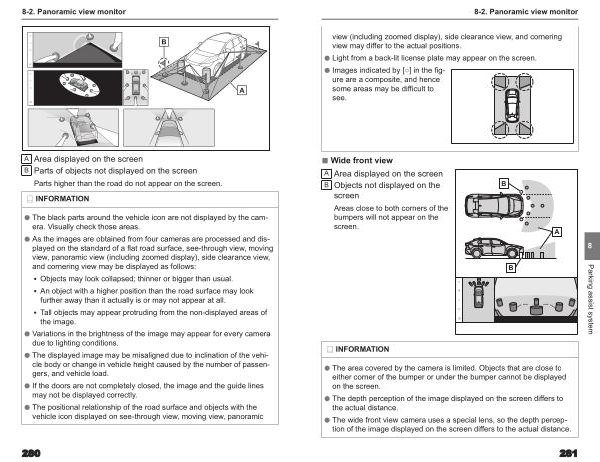

■ Wide front view
A Area displayed on the screen
B Objects not displayed on the screen
Areas close to both corners of the bumpers will not appear on the screen .
8
Parking assist system
INFORMATION
● The area covered by the camera is limited . Objects that are close to either corner of the bumper or under the bumper cannot be displayed on the screen .
● The depth perception of the image displayed on the screen differs to the actual distance .
● The wide front view camera uses a special lens , so the depth perception of the image displayed on the screen differs to the actual distance .
281
