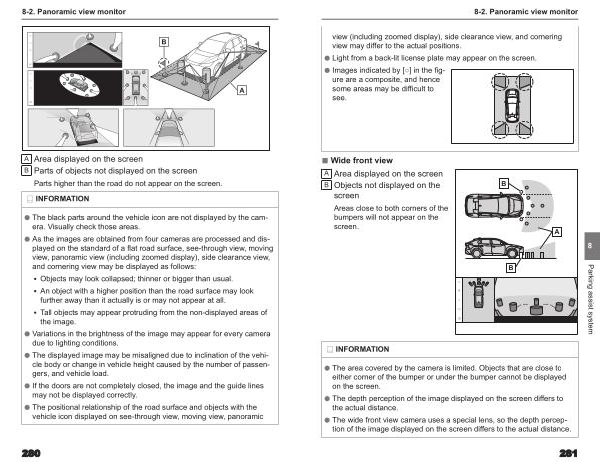

8-2 . Panoramic view monitor
A Area displayed on the screen
B Parts of objects not displayed on the screen Parts higher than the road do not appear on the screen . INFORMATION
● The black parts around the vehicle icon are not displayed by the camera . Visually check those areas .
● As the images are obtained from four cameras are processed and displayed on the standard of a flat road surface , see-through view , moving view , panoramic view ( including zoomed display ), side clearance view , and cornering view may be displayed as follows :
• Objects may look collapsed ; thinner or bigger than usual .
• An object with a higher position than the road surface may look further away than it actually is or may not appear at all .
• Tall objects may appear protruding from the non-displayed areas of the image .
● Variations in the brightness of the image may appear for every camera due to lighting conditions .
● The displayed image may be misaligned due to inclination of the vehicle body or change in vehicle height caused by the number of passengers , and vehicle load .
● If the doors are not completely closed , the image and the guide lines may not be displayed correctly .
● The positional relationship of the road surface and objects with the vehicle icon displayed on see-through view , moving view , panoramic
280
