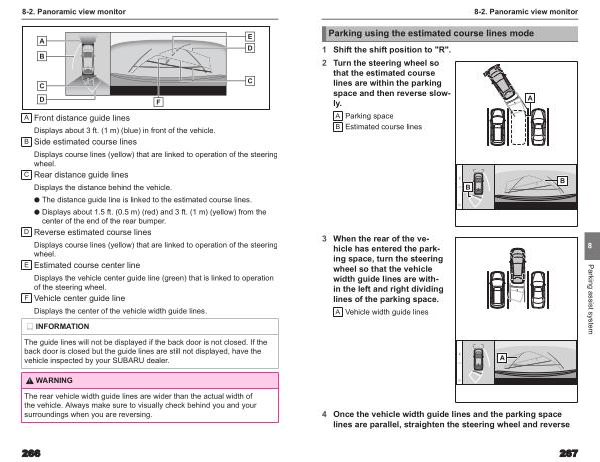

8-2 . Panoramic view monitor
A Front distance guide lines Displays about 3 ft . ( 1 m ) ( blue ) in front of the vehicle .
B Side estimated course lines
Displays course lines ( yellow ) that are linked to operation of the steering wheel .
C Rear distance guide lines Displays the distance behind the vehicle .
● The distance guide line is linked to the estimated course lines .
● Displays about 1.5 ft . ( 0.5 m ) ( red ) and 3 ft . ( 1 m ) ( yellow ) from the center of the end of the rear bumper .
D Reverse estimated course lines
Displays course lines ( yellow ) that are linked to operation of the steering wheel .
E Estimated course center line
F
Displays the vehicle center guide line ( green ) that is linked to operation of the steering wheel . Vehicle center guide line Displays the center of the vehicle width guide lines .
INFORMATION
The guide lines will not be displayed if the back door is not closed . If the back door is closed but the guide lines are still not displayed , have the vehicle inspected by your SUBARU dealer .
WARNING
The
rear vehicle width guide lines are wider than the actual width of the vehicle . Always make sure to visually check behind you and your surroundings when you are reversing .
266
