● Displays about 1.5 ft . ( 0.5 m ) ( red ) from the center of the end of the rear bumper .
C Vehicle center guide line Displays the center of the vehicle width guide lines .
D Vehicle width guide lines
Displays course lines when the vehicle is being reversed in a straight line .
● The lines are wider than the actual width of the vehicle .
E Parking assist guide lines
Displays the course lines of the smallest turn possible behind the vehicle .
● Use the position of operating the steering wheel when parking as a guide .

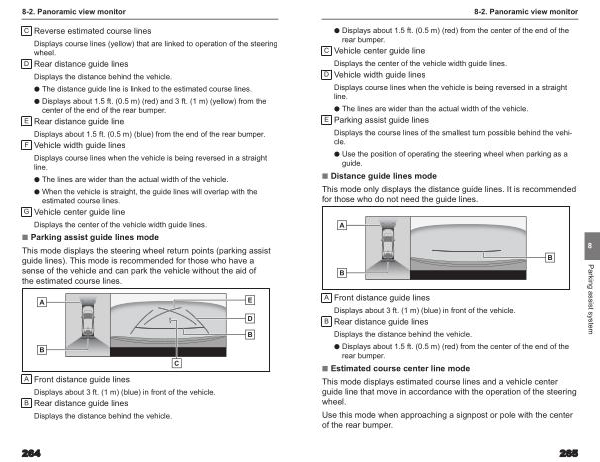

■ Distance guide lines mode
8-2 . Panoramic view monitor
This mode only displays the distance guide lines . It is recommended for those who do not need the guide lines .
8
A Front distance guide lines Displays about 3 ft . ( 1 m ) ( blue ) in front of the vehicle .
B Rear distance guide lines Displays the distance behind the vehicle .
● Displays about 1.5 ft . ( 0.5 m ) ( red ) from the center of the end of the rear bumper .
■ Estimated course center line mode
This mode displays estimated course lines and a vehicle center guide line that move in accordance with the operation of the steering wheel .
Use this mode when approaching a signpost or pole with the center of the rear bumper .
Parking assist system
265
