Related Links Changing the panoramic view monitor settings ( P . 275 )

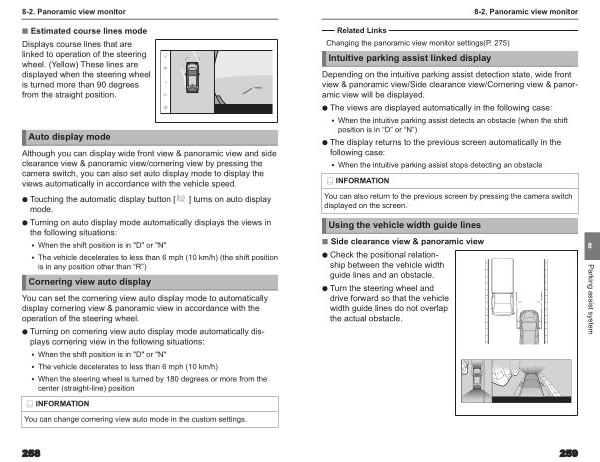

Intuitive parking assist linked display
Depending on the intuitive parking assist detection state , wide front view & panoramic view / Side clearance view / Cornering view & panoramic view will be displayed .
● The views are displayed automatically in the following case :
• When the intuitive parking assist detects an obstacle ( when the shift position is in “ D ” or “ N ”)
● The display returns to the previous screen automatically in the following case :
• When the intuitive parking assist stops detecting an obstacle
INFORMATION
You can also return to the previous screen by pressing the camera switch displayed on the screen .
Using the vehicle width guide lines
8-2 . Panoramic view monitor
■
Side clearance view & panoramic view
● Check the positional relationship between the vehicle width guide lines and an obstacle .
● Turn the steering wheel and drive forward so that the vehicle width guide lines do not overlap the actual obstacle .
8
Parking assist system
259
