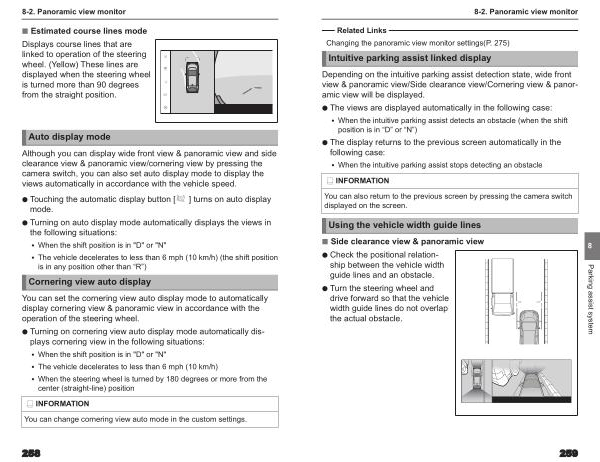

8-2 . Panoramic view monitor
■ Estimated course lines mode
Displays course lines that are linked to operation of the steering wheel . ( Yellow ) These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position .
Auto display mode
Although you can display wide front view & panoramic view and side clearance view & panoramic view / cornering view by pressing the camera switch , you can also set auto display mode to display the views automatically in accordance with the vehicle speed .
● Touching the automatic display button [ ] turns on auto display mode .
● Turning on auto display mode automatically displays the views in the following situations :
• When the shift position is in " D " or " N "
• The vehicle decelerates to less than 6 mph ( 10 km / h ) ( the shift position is in any position other than “ R ”)
Cornering view auto display
You can set the cornering view auto display mode to automatically display cornering view & panoramic view in accordance with the operation of the steering wheel .
● Turning on cornering view auto display mode automatically displays cornering view in the following situations :
• When the shift position is in " D " or " N "
• The vehicle decelerates to less than 6 mph ( 10 km / h )
• When the steering wheel is turned by 180 degrees or more from the center ( straight-line ) position
INFORMATION You can change cornering view auto mode in the custom settings .
258
