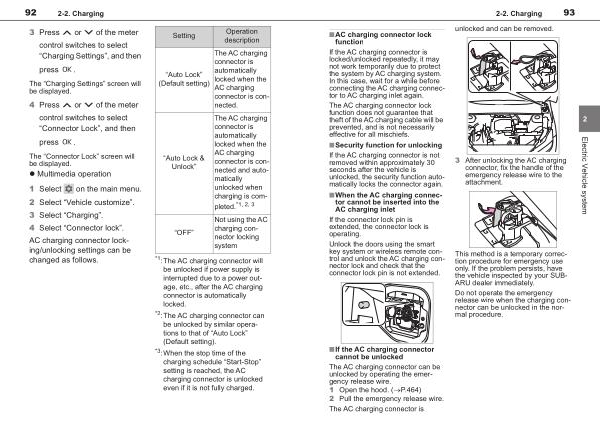

92 2-2 . Charging
3 Press or of the meter control switches to select “ Charging Settings ”, and then
press .
The “ Charging Settings ” screen will be displayed .
4 Press or of the meter control switches to select “ Connector Lock ”, and then
press .
The “ Connector Lock ” screen will be displayed .
• Multimedia operation
1 Select on the main menu . 2 Select “ Vehicle customize ”. 3 Select “ Charging ”. 4 Select “ Connector lock ”.
AC charging connector locking / unlocking settings can be changed as follows .
Setting
“ Auto Lock ” ( Default setting )
“ Auto Lock & Unlock ”
“ OFF ”
Operation description
The AC charging connector is automatically locked when the AC charging connector is connected .
The AC charging connector is automatically locked when the AC charging connector is connected and automatically unlocked when charging is completed . * 1 , 2 , 3
Not using the AC charging connector locking system
* 1 : The AC charging connector will
be unlocked if power supply is interrupted due to a power outage , etc ., after the AC charging connector is automatically locked .
* 2 : The AC charging connector can
be unlocked by similar operations to that of “ Auto Lock ” ( Default setting ).
* 3 : When the stop time of the
charging schedule “ Start-Stop ” setting is reached , the AC charging connector is unlocked even if it is not fully charged .
