7-3 . Do-it-yourself maintenance
479

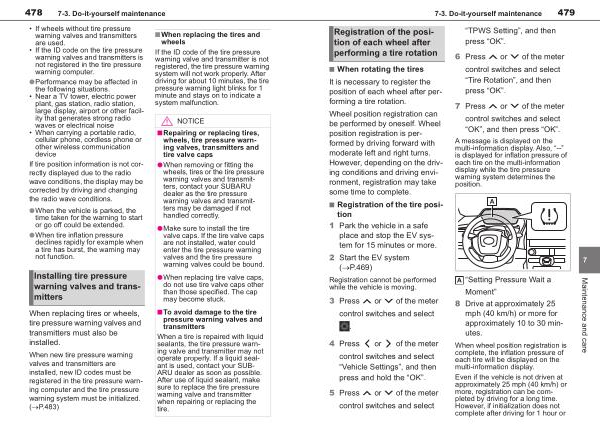

Registration of the position of each wheel after performing a tire rotation
■ When rotating the tires
It is necessary to register the position of each wheel after performing a tire rotation .
Wheel position registration can be performed by oneself . Wheel position registration is performed by driving forward with moderate left and right turns . However , depending on the driving conditions and driving environment , registration may take some time to complete .
■ Registration of the tire position
1 Park the vehicle in a safe place and stop the EV system for 15 minutes or more .
2 Start the EV system ( �P . 469 )
Registration cannot be performed while the vehicle is moving .
3 Press or of the meter control switches and select
.
4 Press or of the meter control switches and select “ Vehicle Settings ”, and then press and hold the “ OK ”.
5 Press or of the meter control switches and select
“ TPWS Setting ”, and then press “ OK ”.
6 Press or of the meter control switches and select “ Tire Rotation ”, and then press “ OK ”.
7 Press or of the meter control switches and select “ OK ”, and then press “ OK ”. A message is displayed on the multi-information display . Also , “ --” is displayed for inflation pressure of
each tire on the multi-information display while the tire pressure warning system determines the
position .
“ Setting Pressure Wait a Moment ”
8 Drive at approximately 25 mph ( 40 km / h ) or more for approximately 10 to 30 minutes .
When wheel position registration is complete , the inflation pressure of each tire will be displayed on the multi-information display .
Even if the vehicle is not driven at approximately 25 mph ( 40 km / h ) or more , registration can be completed by driving for a long time .
However , if initialization does not complete after driving for 1 hour or
7
Maintenance and care
